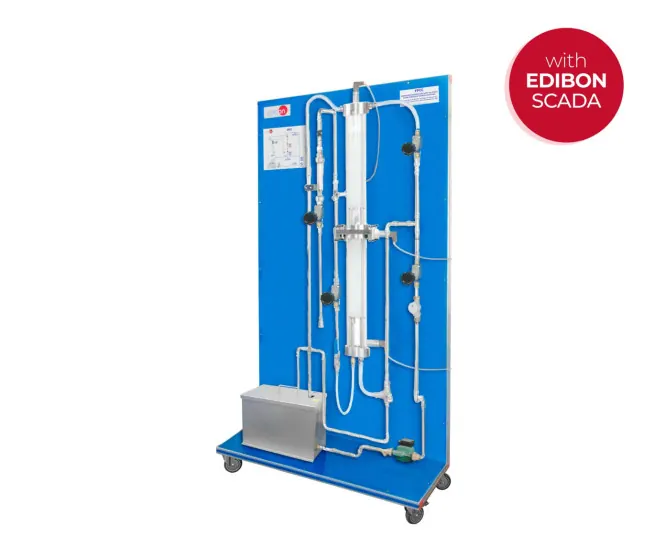

FPCC: Computer Controlled Unit to Study Flow through Packed Columns
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A transparent packed column that can be run with water, air or both together to simulate an absorption column. It is used to measure pressure drop against gas and liquid rates, to observe loading and flooding and to compare different packing materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Inner diameter | 80 mm |
| Water storage tank, capacity | 60 l |
| Flow | 18 l./min |
| Max. volumetric flow | 8 m³/h |
| Max. pressure | 1 bar rel |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
