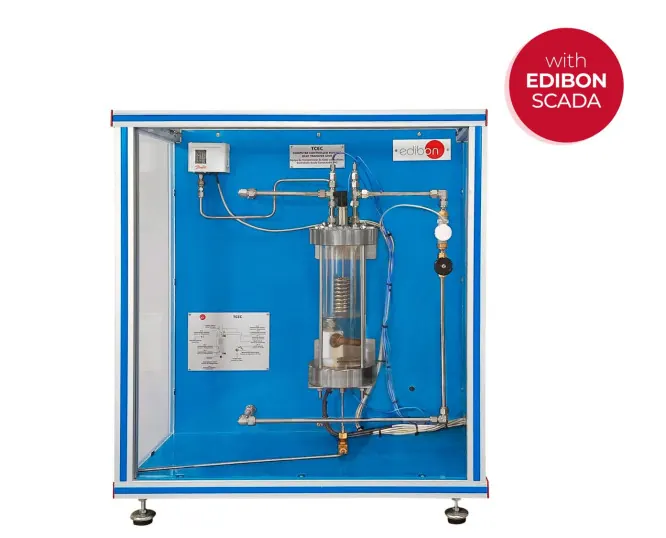

TCEC: Computer Controlled Boiling Heat Transfer Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A unit in which a heating element mounted horizontally inside a glass chamber boils a refrigerant, so the boiling curve can be traced. Students observe convective, nucleate and film boiling, locate the critical heat flux and measure condensation on the cooling coil.
Technical Specifications
| Parameter | Value |
|---|---|
| External diameter | 100 mm |
| Internal diameter | 90 mm |
| Pressure sensor, range | 0 to 6.5 bar |
| Flow sensor, range | 0 to 6.5 l/min |
| Length | 300 mm |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
