Graded-Index (GRIN) Multimode Fiber Optic Patch Cables
Brand: ThorLabs | Category: Scientific & Laboratory Equipment

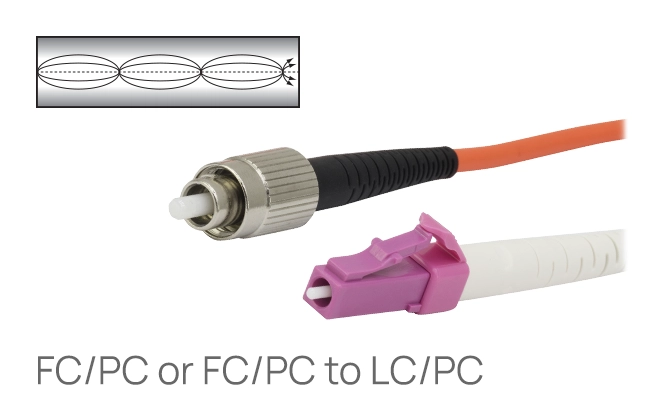

Patch cables built from graded-index multimode fibre, whose gradual index profile cuts modal dispersion and raises bandwidth compared with step-index fibre. They are supplied with narrow key FC/PC or LC/PC ceramic ferrule connectors.
Technical Specifications
| Parameter | Value |
|---|---|
| Core options | 50 micrometres (OM2 and OM4) and 62.5 micrometres (OM1) |
| Cladding diameter | 125 micrometres; outer jacket 3 mm |
| Numerical aperture | 0.200 (50 micrometre core) or 0.275 (62.5 micrometre core) |
| Overfilled modal bandwidth | up to 4700 MHz km at 850 nm on OM4 |
| Attenuation | 2.3 dB/km or less at 850 nm on GIF50C |
| Specification | Lengths of 1, 2 and 5 m, with 3, 10 and 20 m also available for OM1 |
