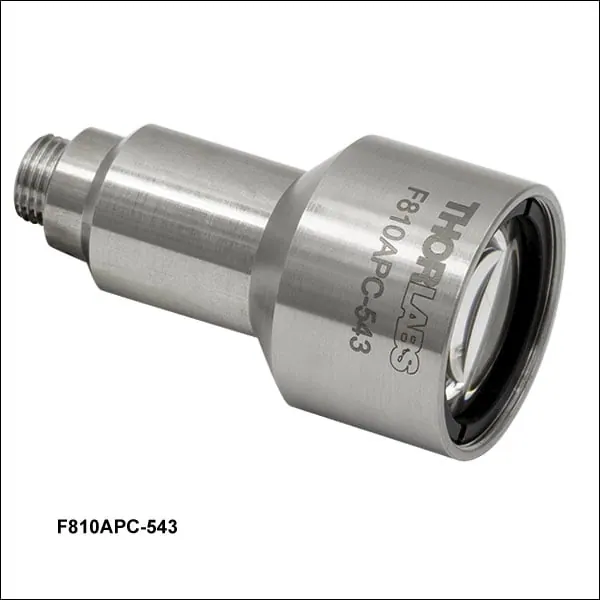

F810 Series Air-Spaced Doublet Fiber Collimators
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Factory aligned collimation packages with a multi-element doublet lens, giving diffraction limited performance at the design wavelength. With no moving parts they cannot drift out of alignment, which suits permanent fibre coupled detection systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Design wavelengths from 405 nm to 2 micrometres |
| Specification | Collimated beam diameters from 5.3 mm to 8.0 mm |
| Connector options | FC/APC, FC/PC (2.2 mm wide key) or SMA |
| Lens material | UV fused silica or N-SF6, antireflection coated |
| Housing | non-magnetic stainless steel |
| Specification | Factory aligned one focal length from the fibre tip |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
