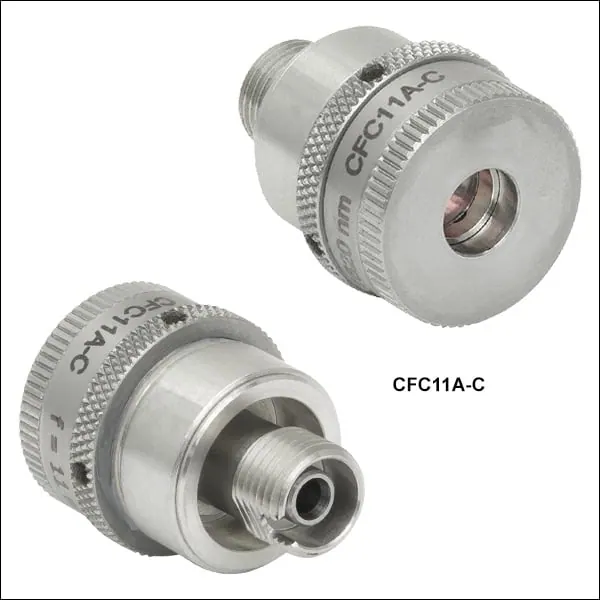

CFC Series FC/APC Adjustable Aspheric Collimators
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Adjustable focus collimators built around a spring loaded aspheric lens in a stainless steel cell, for collimating light out of an FC/APC terminated fibre. A locking ring holds the setting once the beam is collimated.
Technical Specifications
| Parameter | Value |
|---|---|
| Focal length options | 2.0 mm, 4.6 mm, 7.5 mm and 11.0 mm |
| AR coated aspheric lens options | 350 to 700 nm, 650 to 1050 nm and 1050 to 1620 nm |
| Pointing error during adjustment | less than 15 mrad |
| Receptacle | FC/APC with a 2.2 mm wide key |
| Specification | Diffraction limited performance with a compatible connector |
| Specification | Captive lens cell with locking ring |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
