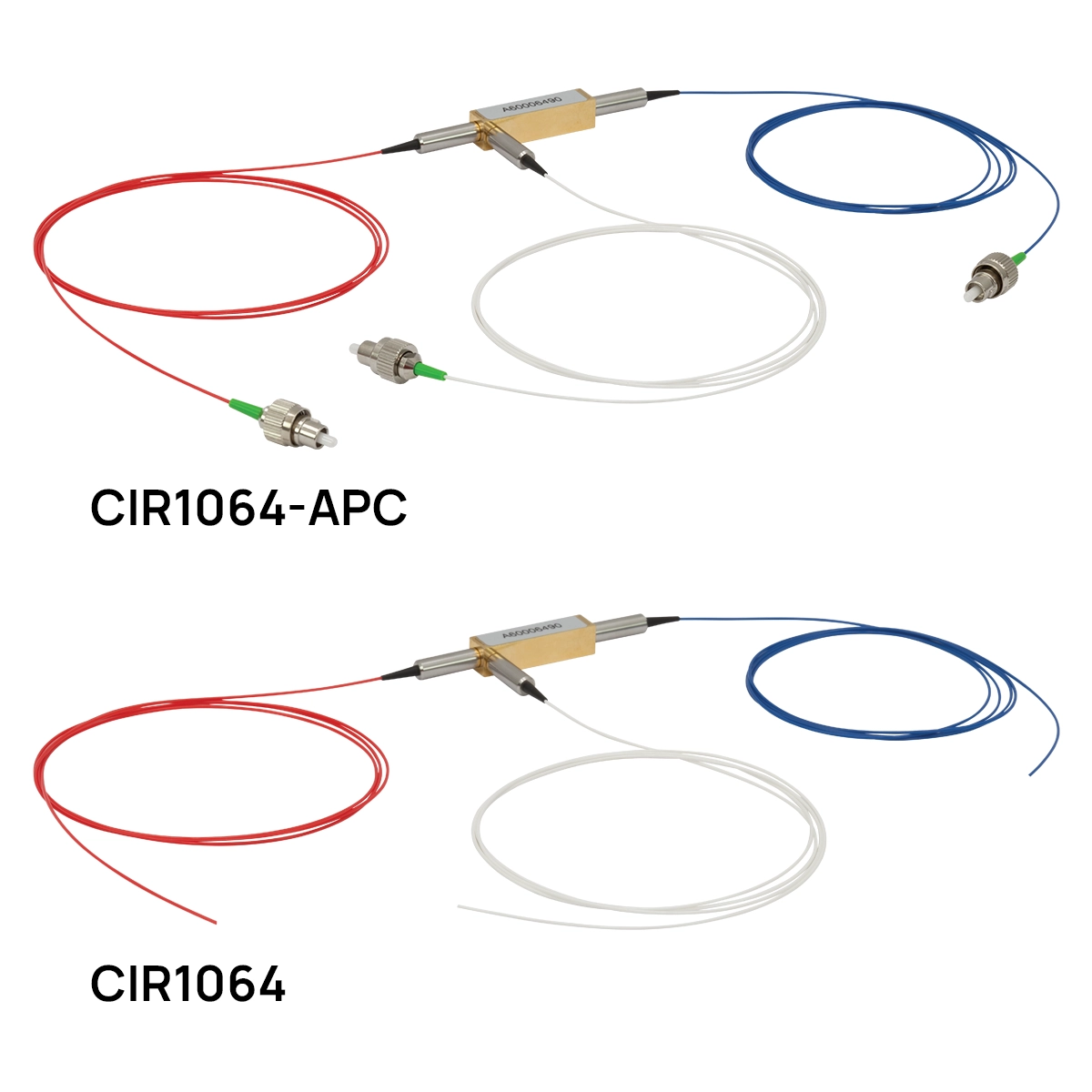

Single Mode Fiber Optic Circulators (CIR Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Three port non-reciprocal devices that pass light from port 1 to port 2 and from port 2 to port 3 with low loss, while blocking the reverse paths. They are used in add-drop multiplexing, fibre sensing and bidirectional transmission.
Technical Specifications
| Parameter | Value |
|---|---|
| Centre wavelengths | 1064 nm, 1310 nm (O-band) or 1550 nm (C-band) |
| Insertion loss | 0.8 dB typical at 1310 nm and 1550 nm |
| Isolation | greater than 40 dB at 1550 nm |
| Directivity from port 1 to port 3 | 50 dB or better at 1310 nm |
| Maximum continuous wave power | 300 mW or 500 mW depending on model |
| Specification | Available unterminated or with FC/PC or FC/APC connectors |
