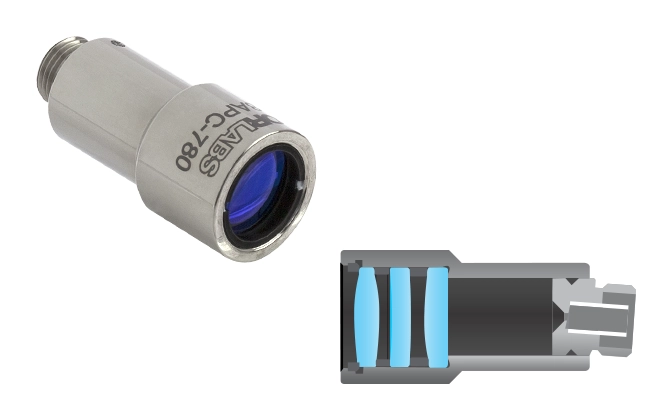

TC Series Triplet Fiber Optic Collimators and Couplers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Air-spaced triplet lens collimators that produce a nearly Gaussian output with lower divergence and wavefront error than an aspheric collimator. They can be used in pairs for collimator to collimator coupling over separations up to 2 m.
Technical Specifications
| Parameter | Value |
|---|---|
| Prealigned wavelengths | 405, 532, 543, 633, 780, 850, 980, 1060, 1310, 1550 nm and 2 micrometres |
| Specification | Effective focal lengths near 6 mm, 12 mm, 18 mm or 25 mm |
| Wavefront error | lambda/8 peak to valley typical |
| Full-angle divergence | 0.119 degrees or less |
| Pointing error | 2 mrad maximum (FC/PC), 3 mrad maximum (FC/APC) |
| Specification | Non-magnetic stainless steel housing, test data sheet included |
