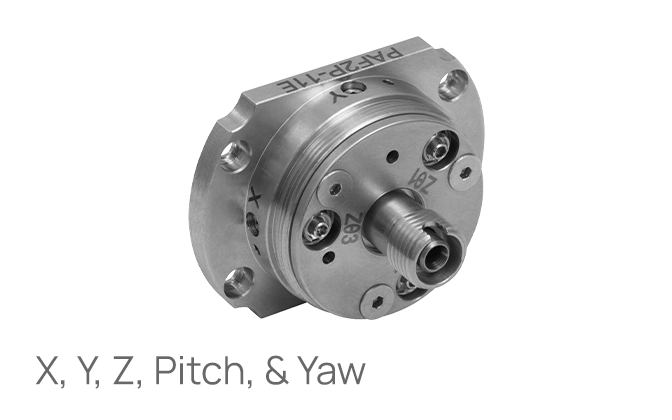

FiberPort Collimators and Couplers (PAF2 Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Compact micropositioners that couple a free space beam into fibre or collimate the output, with five degrees of freedom plus rotation. They work with single mode, multimode and polarisation maintaining fibre and hold alignment once locked.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Five degrees of freedom plus rotational adjustment |
| Lens options | cemented achromatic doublet or moulded aspheric |
| Specification | Effective focal lengths from 2 mm to 18.4 mm |
| Connector options | FC/PC, FC/APC and SMA905 |
| Specification | Models available for 350 nm to 5 micrometres |
| Specification | FC/PC and FC/APC versions accept 2.1 mm wide key and 2.0 mm narrow key connectors |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
