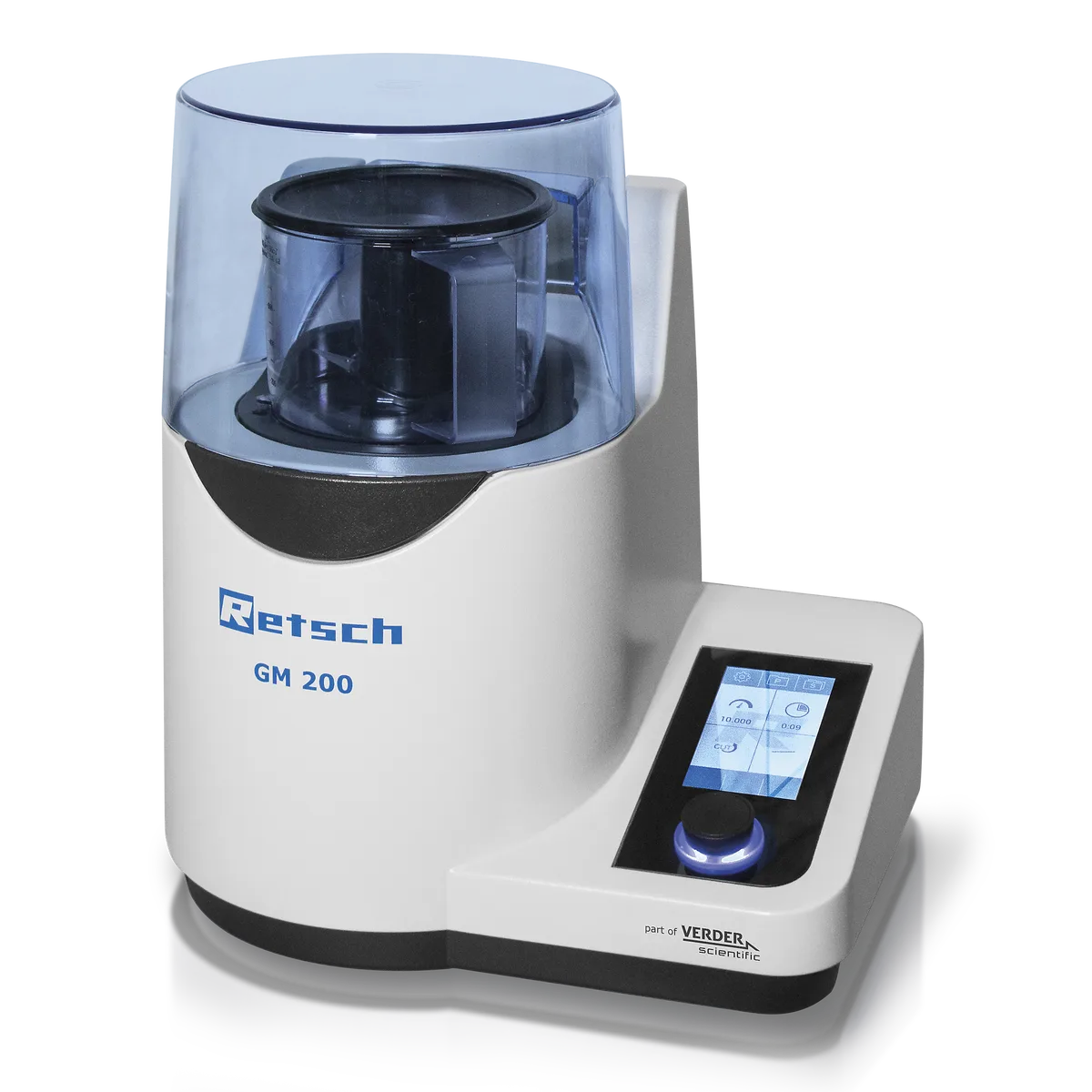

GRINDOMIX GM 200: Knife Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Knife mill for preparing food and feed samples, homogenising material that contains water, fat or oil as well as dry and fibrous samples. Two blade speeds allow coarse cutting then fine homogenisation in one vessel, and a boost setting raises speed to 14,000 rpm for the final stage.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 40 mm |
| Final fineness | 300 µm |
| Batch size / feed quantity | with standard lid 700 ml ; with reduction lid 150-300 ml ; with gravity lid 300 - 600 ml |
| Grinding chamber volume | with standard lid 1000 ml ; with reduction lid 250 ml/500 ml ; with gravity lid 400 - 800 ml |
| Speed setting | digital, 2,000 - 10,000 min-1 (14,000 min-1 BOOST) |
| Setting of grinding time | digital, 1 s - 3 min |
| Drive power | ~ 1000 W |
| Power connection | 1-phase |
| W x H x D closed | 350 x 275 x 392 mm (opened: 350 x 410 x 553) |
| Net weight | ~ 10 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
