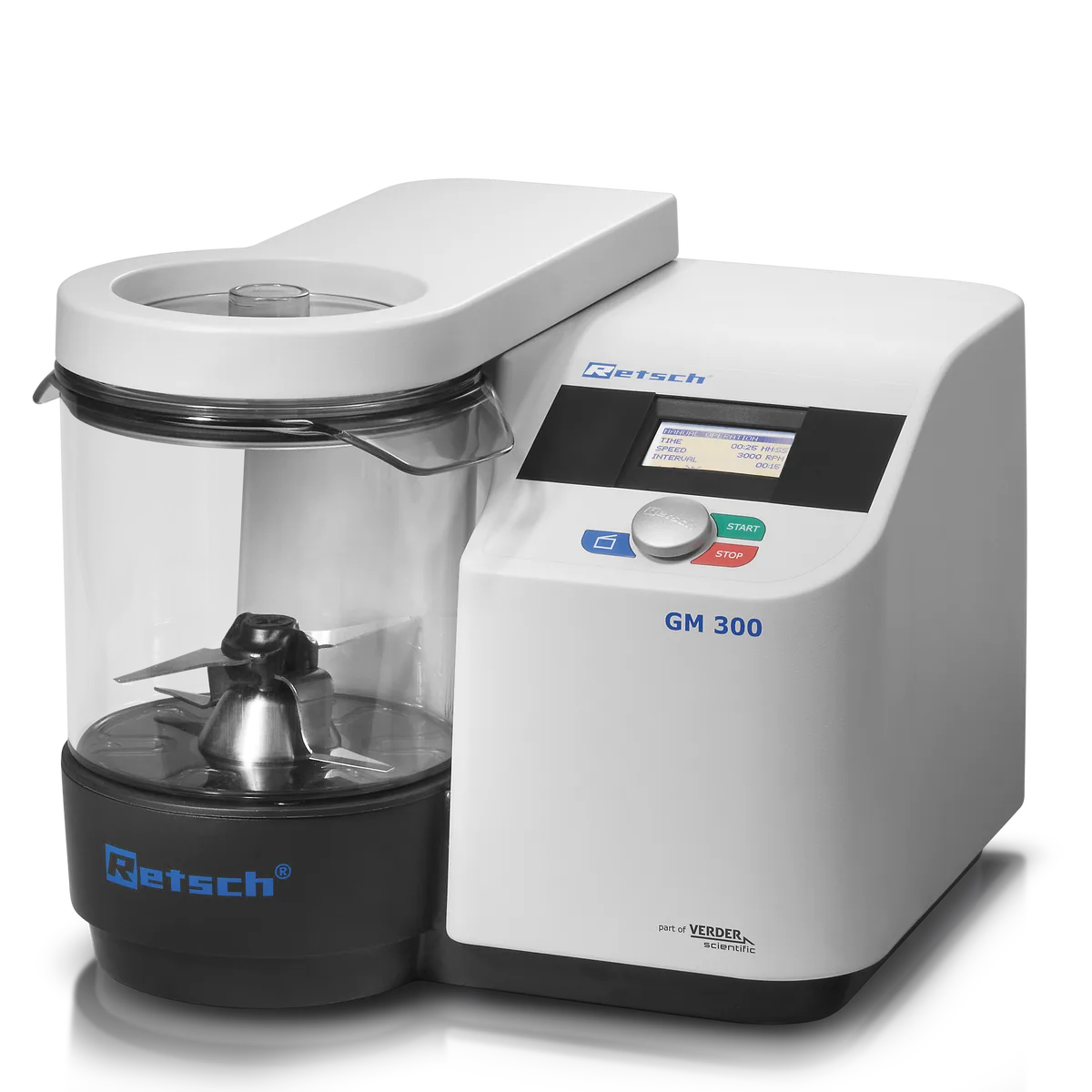

GRINDOMIX GM 300: Knife Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Large capacity knife mill taking batches up to 4500 ml, for food and feed samples that need to be homogenised in bulk rather than in sub-samples. All parts that touch the sample are autoclavable, which matters where microbiological testing follows the milling step.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | ~ 130 mm |
| Final fineness | 300 µm |
| Batch size / feed quantity | with standard lid 4500 ml ; with gravity lid 4000 ml |
| Grinding chamber volume | 5000 ml, reduction with gravity lid |
| Speed setting | digital, 500 - 4000 min-1 |
| Material of grinding tools | grinding container: autoclavable plastic PC, stainless steel 1.4435 ; blade: stainless steel 1.4034 ; holder for blade: PVDF ; sealings: EPDM, FKM |
| Setting of grinding time | digital, 5 s - 3 min |
| Drive power | continuously 1.1 kW, short term 3 kW |
| Power connection | 1-phase |
| W x H x D closed | 440 mm x 340 mm x 440 mm |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
