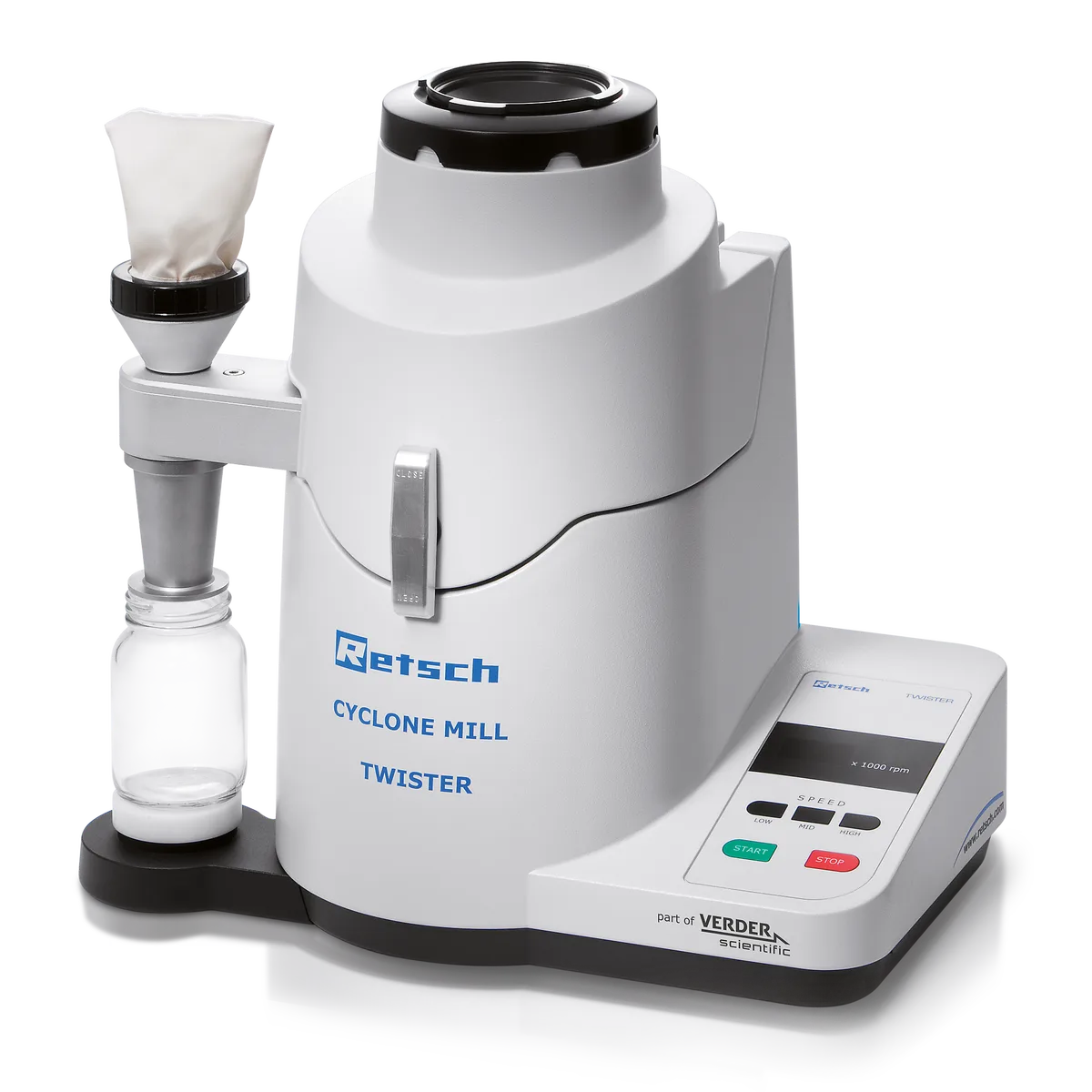

TWISTER: Cyclone Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Cyclone mill developed for preparing food and feed samples ahead of near infrared analysis. A cyclone separator draws the ground material out of the grinding chamber quickly, which limits heating and moisture loss, both of which would otherwise shift the NIR result. Final fineness is below 250 µm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 10 mm |
| Final fineness | 250 µm |
| Batch size / feed quantity | 250 ml |
| Speed setting | 10,000 / 12,000 / 14,000 min-1 |
| Rotor peripheral speed | 52 / 62 / 72 m/s |
| Rotor diameter | 98.5 mm |
| Sieve sizes | 1 mm / 2 mm |
| Drive power | 900 W |
| Power connection | 1-phase |
| W x H x D closed | 449 x 427 x 283 mm |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
