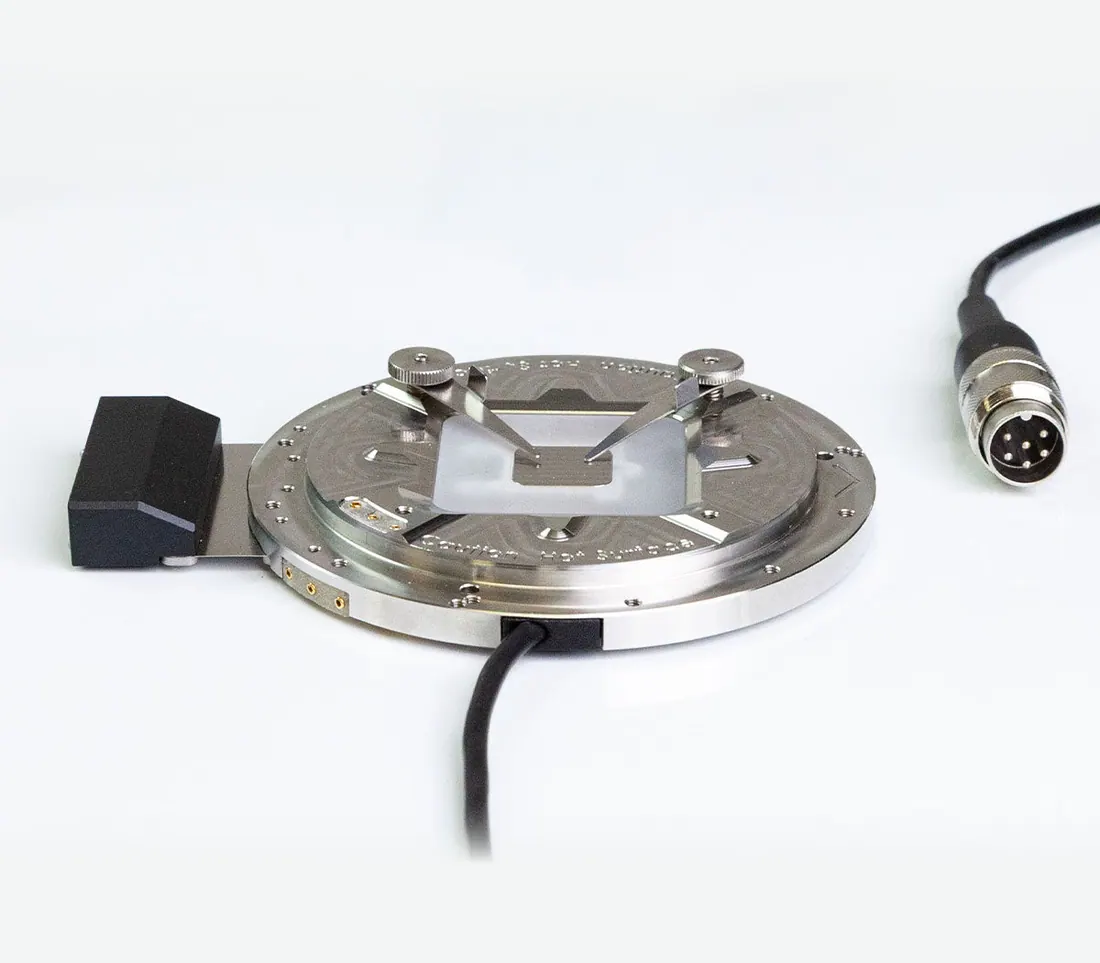

Heater Sample Holder
Brand: Nanosurf | Category: Nanotechnology
A resistively heated sample holder covering ambient temperature to 250 degrees C, driven by the CH1 temperature controller. It is used for studying phase changes, annealing and temperature dependent mechanical behaviour under the AFM tip.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | ambient to 250 degrees C |
| Requires | Temperature Controller CH1 |
| Specification | Stackable with the Environmental Option and EC-Cell |
| Dimensions | 100 mm diameter x 8 mm |
| Weight | 0.5 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
