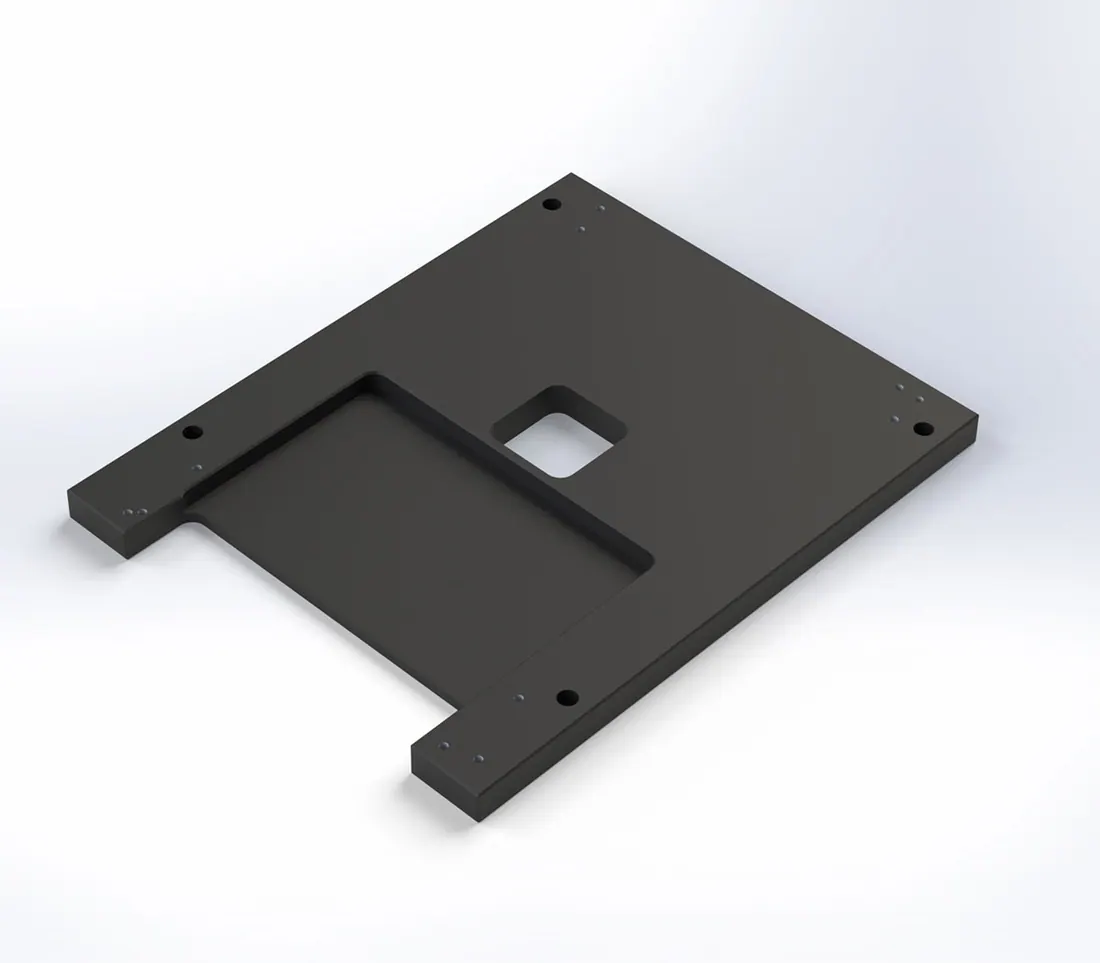

IMO Stage to Isostage300 Adapter
Brand: Nanosurf | Category: Nanotechnology
An adapter that allows an inverted microscope option stage to be mounted on the Isostage 300 vibration isolation platform. One stage then serves both the microscope setup and the stand-alone setup, which avoids buying a second stage.
Technical Specifications
| Parameter | Value |
|---|---|
| Included | spacers for DriveAFM and FlexAFM scan heads for use with a standard sample holder |
| Dimensions | 340 x 270 x 18 mm |
| Weight | 3.25 kg |
| Compatibility | FlexAFM, DriveAFM |
