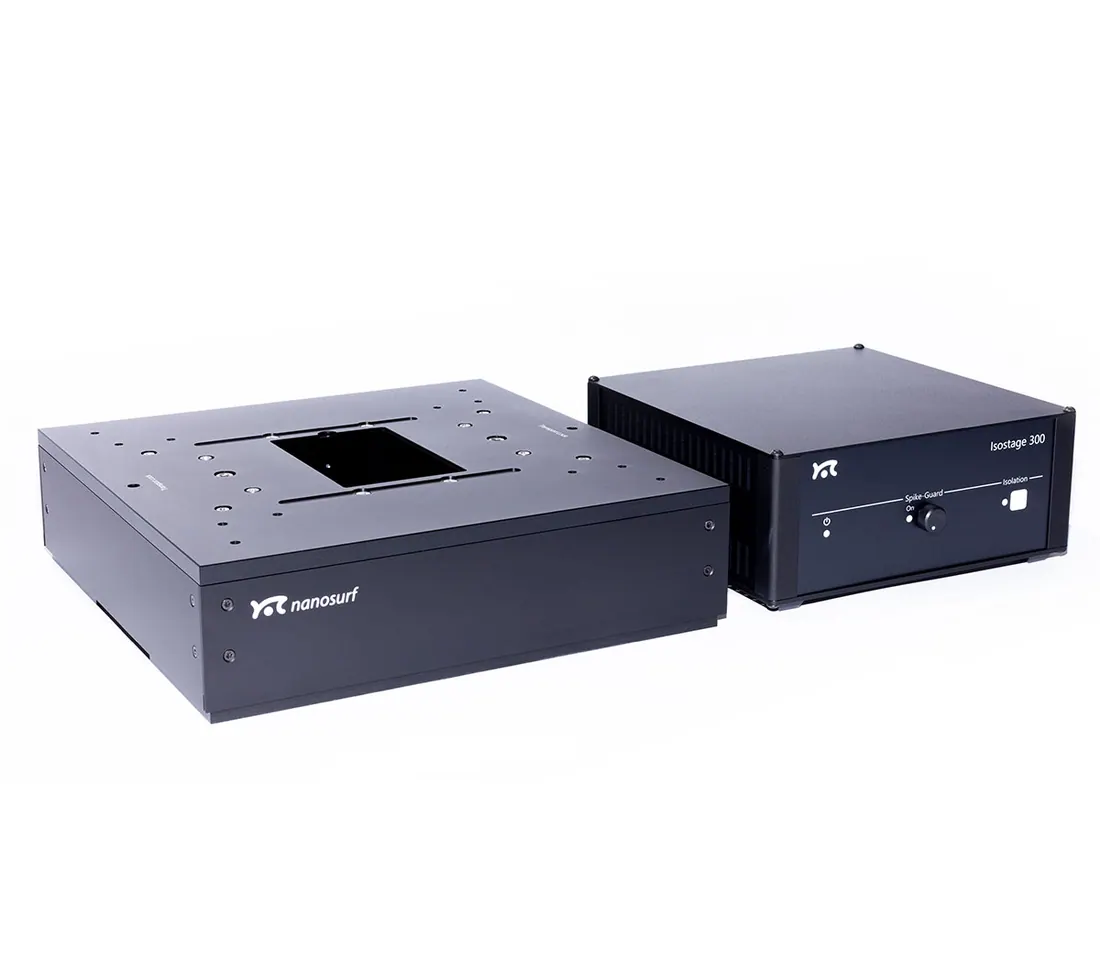

Isostage 300
Brand: Nanosurf | Category: Nanotechnology
A compact vibration isolation platform sized to carry a Nanosurf scan head together with large accessories and sample holders. Spike-Guard detects scan lines affected by uncompensated vibration and rescans them, so a disturbance does not spoil the image.
Technical Specifications
| Parameter | Value |
|---|---|
| Vibration isolation | greater than 30 dB above 160 Hz |
| Versions | 2 to 12 kg load L-version, 10 to 20 kg load H-version |
| Specification | Both versions available in DIMO-compatible form |
| Dimensions | 300 x 300 x 80 mm |
| Weight | 8.9 kg |
| Compatibility | L-version CoreAFM and FlexAFM, H-version FlexAFM and DriveAFM |
