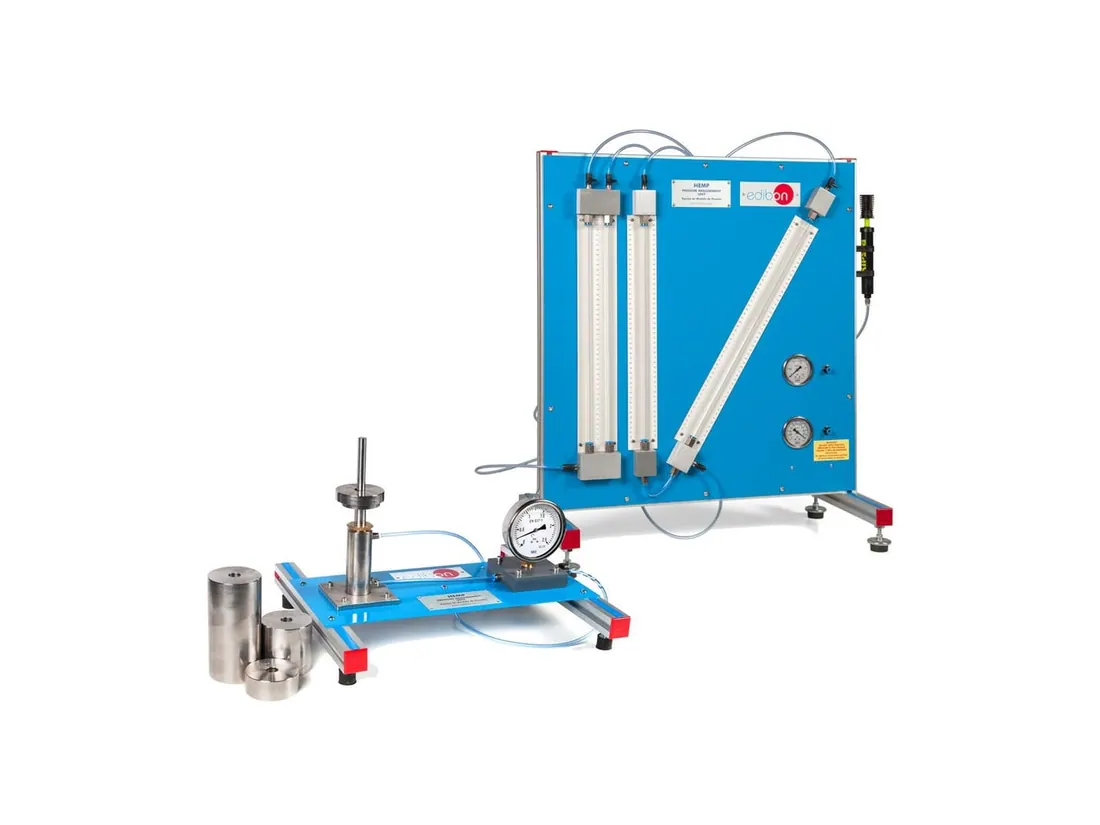

HEMP: Pressure Measurement Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HEMP is a bench unit for teaching pressure measurement. Bourdon gauges, liquid column manometers and electronic transducers are connected to a common pressure source so their readings, ranges and errors can be compared.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 700 x 400 x 800 mm approx |
| Weight | 20 Kg approx |
| Bourdon manometer for measuring negative pressure (vacuum gauge), range | -1 to 0 bar |
| Bourdon manometer for measuring positive pressure, range | 0 to 2.5 bar |
| Cylinder and piston diameter of the piston | 18 mm. FME10 |
| Cylinder and piston area of the piston | 0.000254469 m² |
