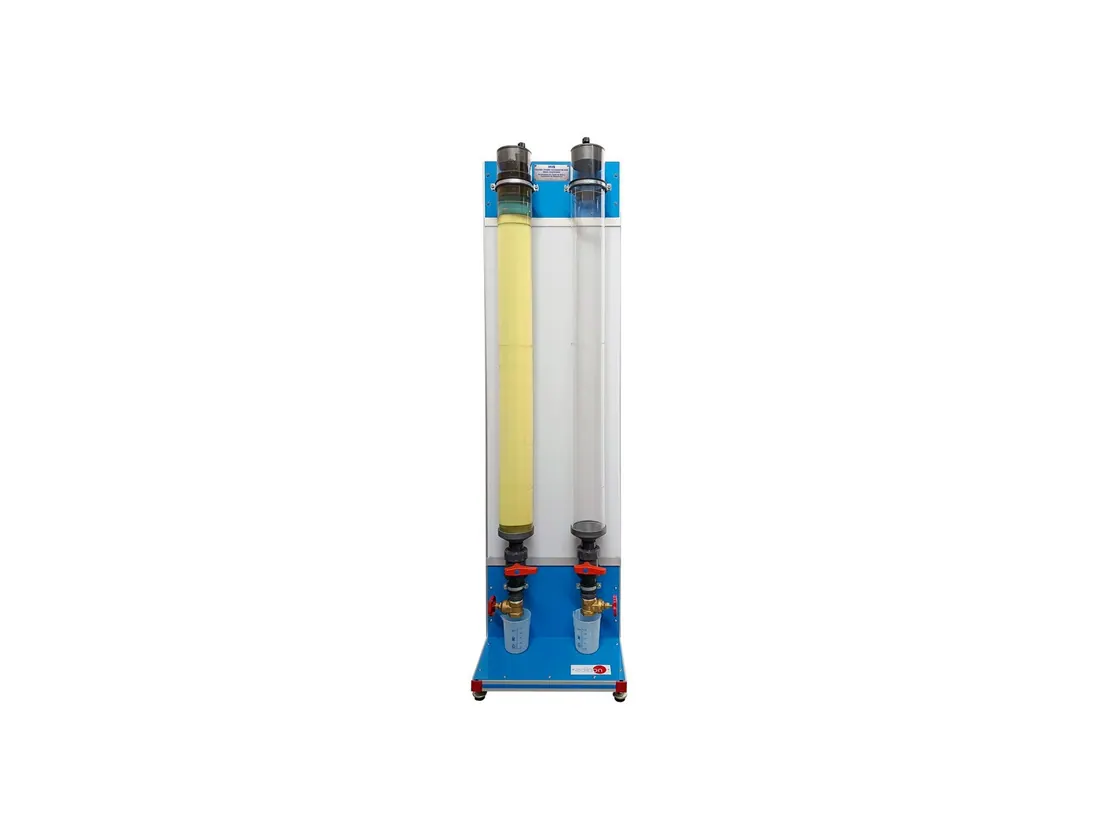

HVB: Drop Ball Viscometer and Resistance Coefficient Determination Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HVB is a falling ball viscometer. Balls of different diameter and density are dropped through a liquid column and timed over a known distance, giving the dynamic viscosity of the liquid and the resistance coefficient of the sphere.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 500 x 670 x 1800 mm approx |
| Weight | 40 Kg approx |
| Internal diameter | 114 mm |
| External diameter | 120 mm |
| Specification | Both cylinders are marked longitudinally every 50 cm, so that the distance the ball travels |
| Two light sources placed between the tubes for ease of viewing. Power | 58 W |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
