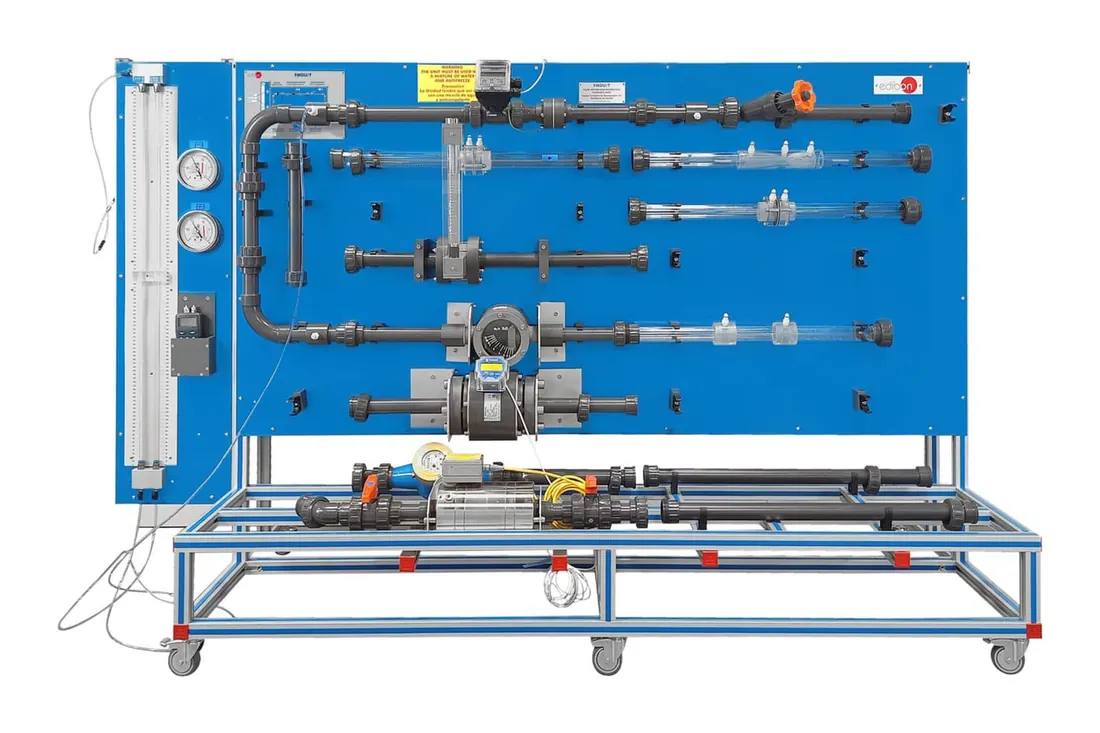

FMDU: Flow Meters Demonstration
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FMDU is a standalone bench comparing the main flow measurement devices. Venturi, orifice plate, nozzle and rotameter are mounted in series with pressure tappings, so discharge coefficients and permanent head loss can be compared.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3200 x 1300 x 1500 mm approx |
| Weight | 300 Kg approx |
| Specification | Water manometer of 1 m length and two Bourdon type manometers from 0 to 2.5 bar, precision 1%, to measure |
| Specification | Centrifugal pump, 0.55 kW, 2.5 bar, 150 l/min, single phase 200 VAC, 240 VAC/50 Hz or 110 VAC, 127 VAC/60 Hz |
| Hydraulics Bench sump tank capacity | 165 l |
| Hydraulics Bench small channel | 8 l |
