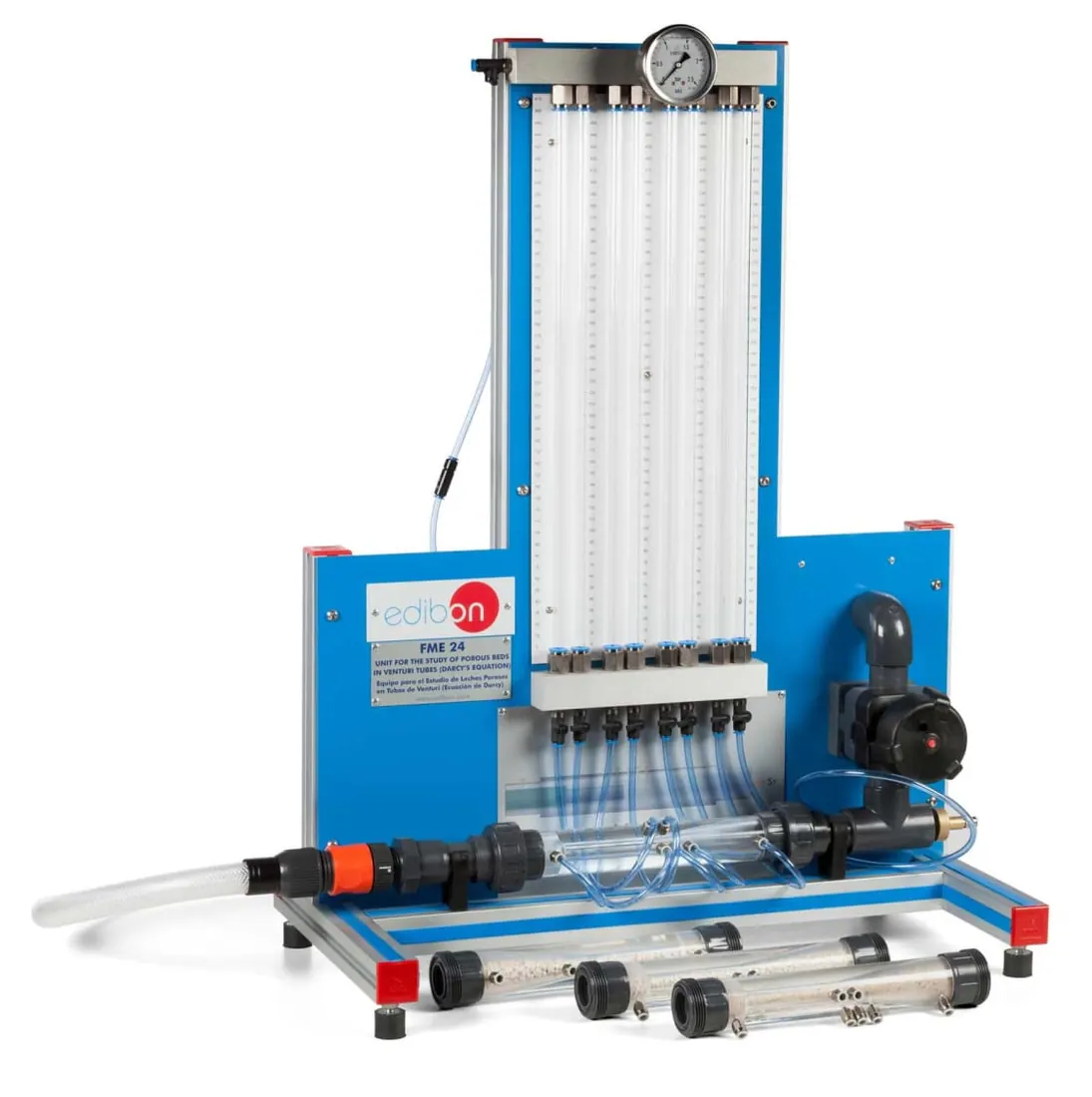

FME24: Unit for the Study of Porous Beds in Venturi Tubes (Darcy's Equation)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME24 is used to study flow through porous media. Water passes through a packed bed in a venturi arrangement while head loss and flow rate are measured, allowing the Darcy equation and the permeability of the bed to be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Water manometer range | 0–300 mm |
| Manometric tubes | 8 |
| Upstream throat diameter | 25 mm |
| Porous-bed grain sizes | FME24/A: 1.0–1.5 mm; FME24/B: 2.5–3.5 mm; FME24/C: 5.5–7.0 mm |
| Unit dimensions | 800 x 450 x 700 mm approx. |
| Unit weight | 15 kg approx. |
Selected data from the model-specific panel on page 29 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
