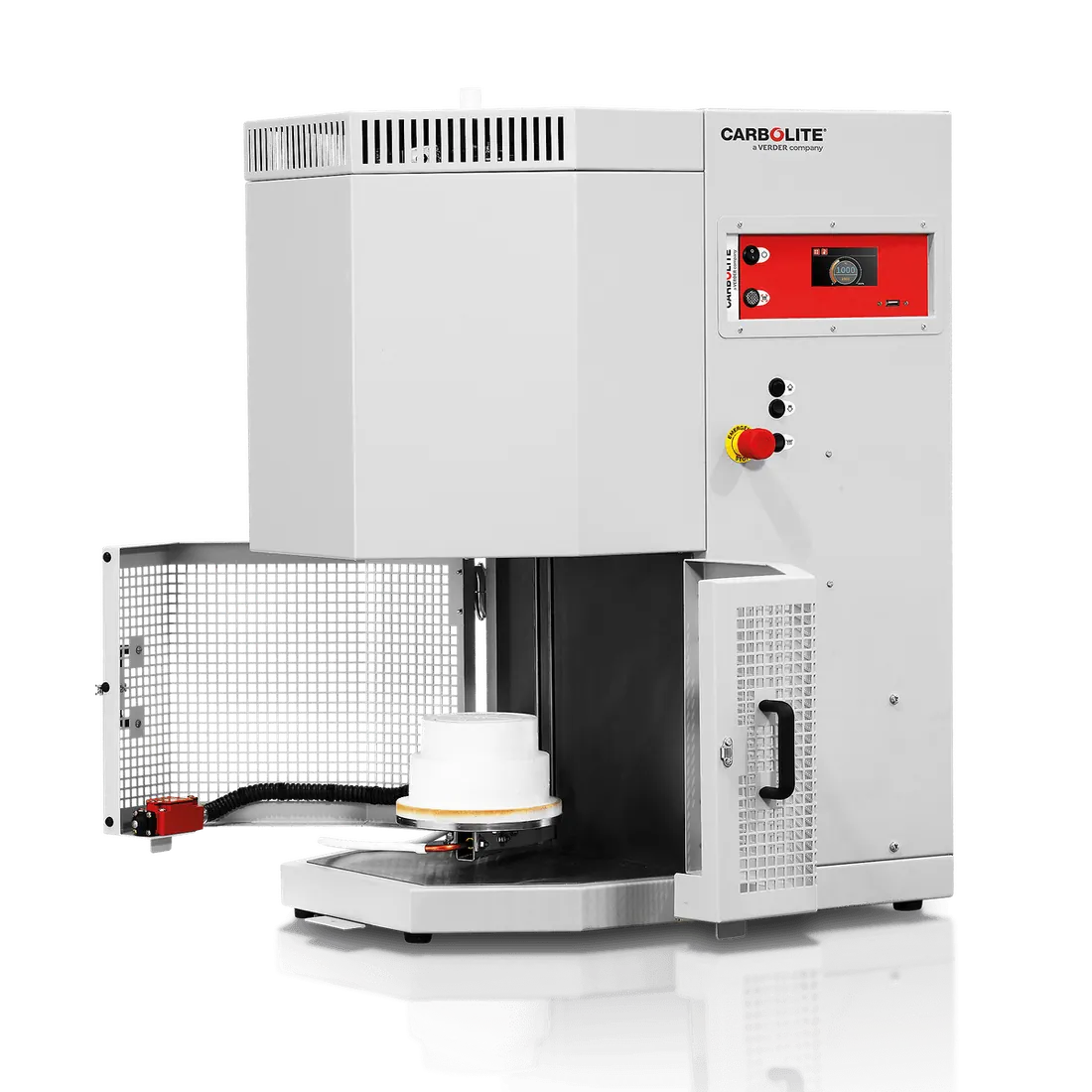

High Temperature Bottom Loading Furnace BLF
Brand: Carbolite Gero | Category: Nanotechnology
A bottom loading furnace with an electrically operated elevator hearth that lifts the load into the heated zone. Elements sit in all six walls of a hexagonal chamber for good uniformity, and the 1600 deg C model suits sintering of zirconia dental crowns.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1600, 1700 and 1800 deg C |
| Capacities | 3 to 21 litres |
| Specification | 1600 deg C model heated by silicon carbide elements |
| Specification | 1700 and 1800 deg C models heated by molybdenum disilicide elements |
| Specification | Electrically operated elevator hearth with hearth cage and safety interlock |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
