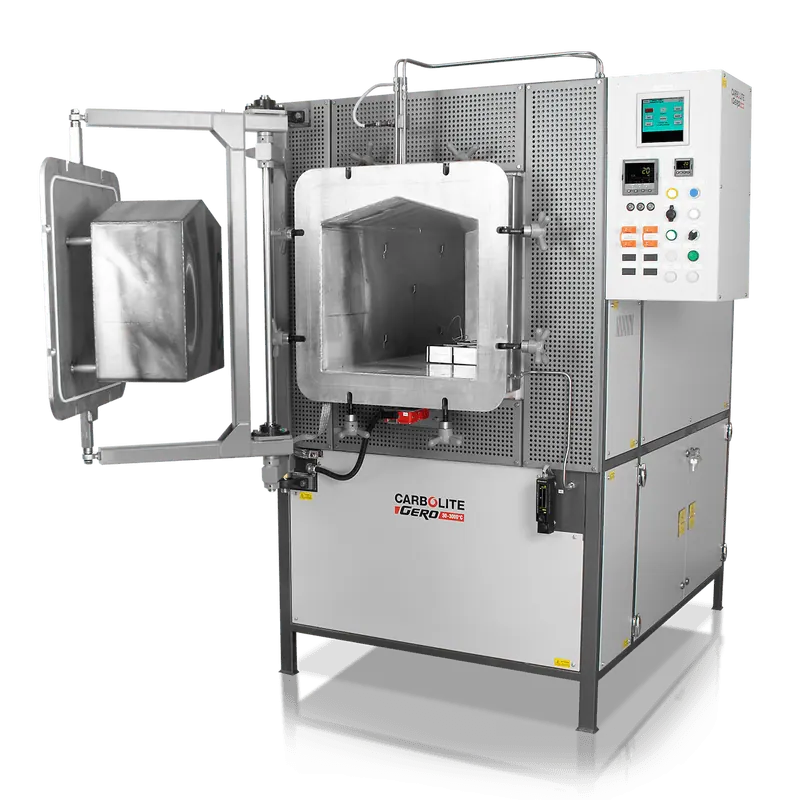

Modified Atmosphere Chamber Furnace GPCMA
Brand: Carbolite Gero | Category: Nanotechnology
A floor standing chamber furnace fitted with a metallic retort to give a heated volume under controlled atmosphere. Oxygen can be reduced to 30 ppm depending on the application, which suits stress relieving of additively manufactured parts.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature by retort material | 1000 deg C for 310 stainless, 1050 deg C for 314 stainless |
| Maximum temperature by retort material | 1100 deg C for Inconel 601, 1150 deg C for Haynes 230 |
| Retort working volumes | 37, 56, 117, 174, 208 or 245 litres |
| Specification | Oxygen levels reduced to 30 ppm depending on the application |
| Specification | Programmable 3508P1 controller with 2-zone cascade control |
| Specification | Optional specification for AMS2750F Nadcap class 1 aerospace applications |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
