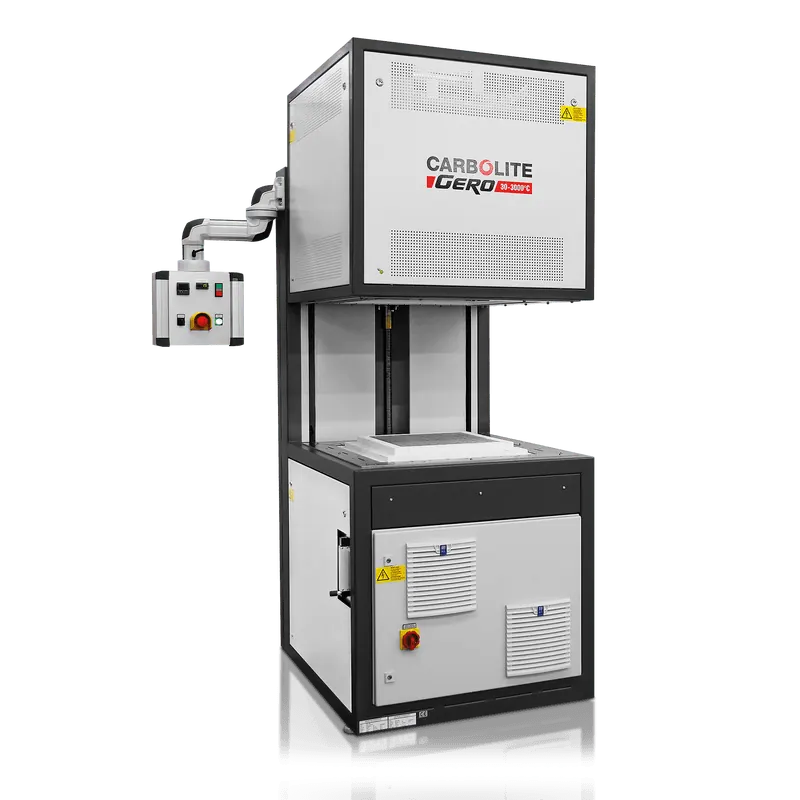

Top Hat Furnace HB
Brand: Carbolite Gero | Category: Nanotechnology
A furnace with an automatically operated vertically moving hood, so the load can be reached from three sides. Bottom loading HB-BL versions keep the hood fixed and move the hearth instead, and preheated air fans can be fitted for debinding.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1300, 1600, 1700 and 1800 deg C |
| Capacities | 80 to 514 litres |
| Specification | FeCrAl wire heating elements for 1300 deg C models |
| Specification | Molybdenum disilicide heating elements for higher temperatures |
| Specification | HB is top hat, HB-BL is bottom loading |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
