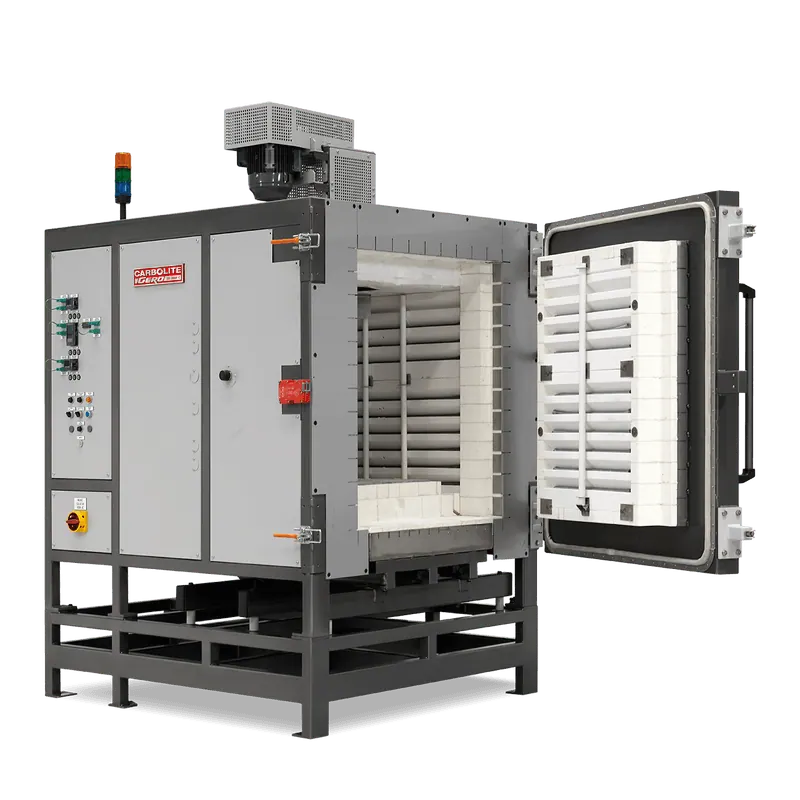

Static or Bogie Chamber Furnace SBCF
Brand: Carbolite Gero | Category: Nanotechnology
An industrial scale chamber furnace on a modular design principle, with a cubic chamber in three sizes. The hearth can be fixed, mounted on a bogie that runs out on a track, or arranged as an elevator hearth.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1100 deg C |
| Specification | 3-zone control with 1 programmable EPC3008P1 and 2 EPC3016 slaves |
| Specification | Under hearth heating and free radiating coiled wire elements on four sides |
| Specification | Furnace can meet the requirements of AMS2750F |
| Specification | Silicon carbide tiles fitted on the hearth for a hard wearing surface |
| Specification | Over-temperature protection fitted as standard |
