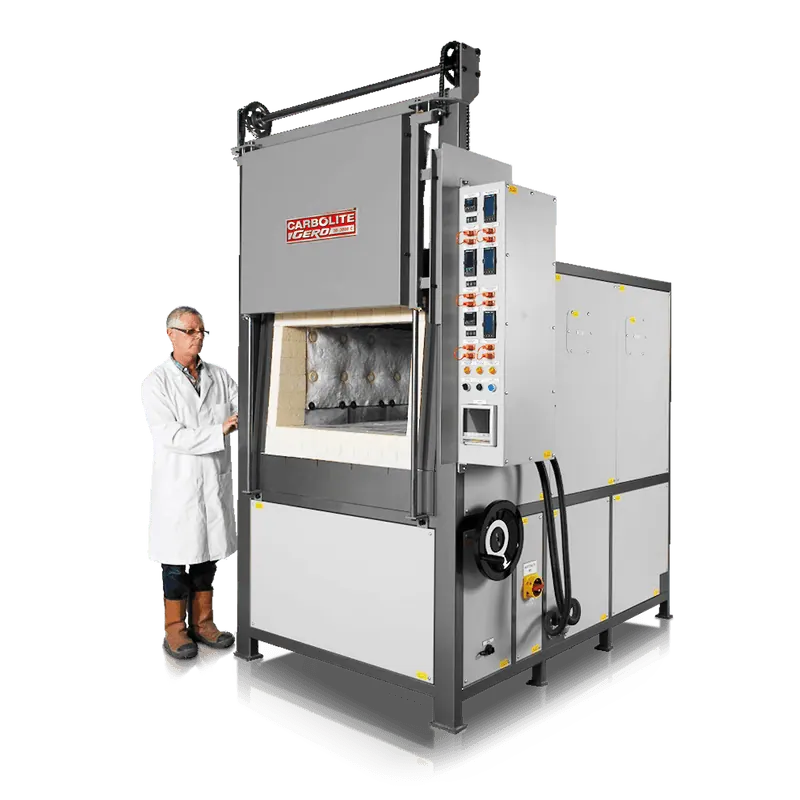

Large Industrial Chamber Furnace LCF
Brand: Carbolite Gero | Category: Nanotechnology
A robust industrial chamber furnace for heat treatment of steels and alloys, ceramics sintering and aerospace work. It is frequently customised, and forms the base for AMS 2750F Nadcap control and data recording packages.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperatures | 1200 and 1400 deg C |
| Specification | 1200 deg C range heated by heavy gauge wire elements in roof and below the hearth |
| Specification | 1400 deg C range heated by silicon carbide elements in roof and below the hearth |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
| Specification | Hard wearing silicon carbide tiled hearth |
| Specification | Manually operated vertically opening door with safety interlock |
