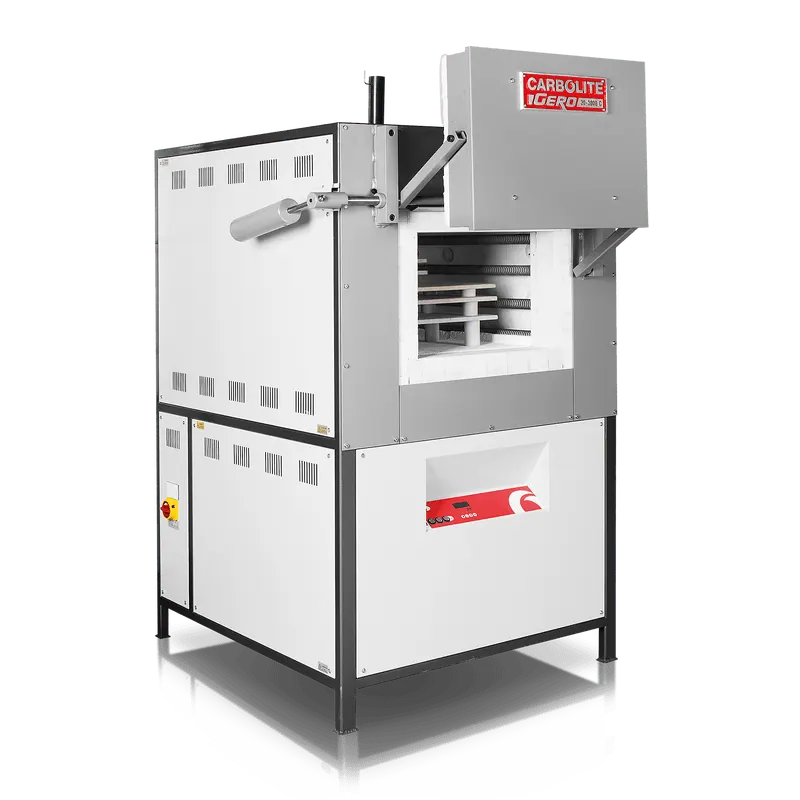

General Purpose Industrial Chamber Furnace GPC
Brand: Carbolite Gero | Category: Nanotechnology
A large floor standing general purpose chamber furnace range. Free radiating coiled wire elements sit on two sides and the roof, all models have under hearth heating, and a vertical lift door keeps the heated surface away from the operator.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1200 or 1300 deg C |
| Chamber volumes | 131, 200, 225, 300, 350 or 400 litres |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
| Specification | Under hearth heating on all models |
| Specification | Optional metallic retorts for modified atmospheres up to 1100 deg C |
| Specification | Bespoke specifications available for AMS2750F Nadcap applications |
