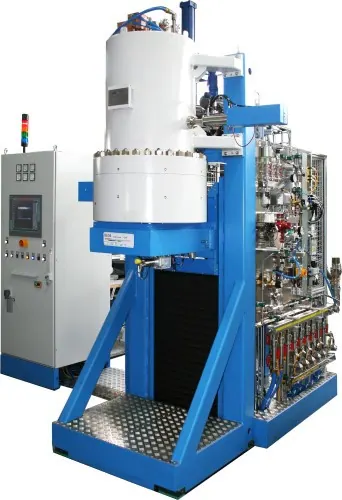

High Temperature Gas Pressure Sintering Furnace Type FP W
Brand: FCT Systeme | Category: Nanotechnology
A resistance heated Sinter-HIP furnace for sintering under vacuum, relative pressure or overpressure. It suits ceramics and metals that decompose at high temperature and places no restriction on the geometry of the parts being sintered.
Technical Specifications
| Parameter | Value |
|---|---|
| Working temperature | up to 2000 deg C at 10 MPa |
| Specification | Models FP W 1.25 to FP W 300, useful volume 1.25 dm3 to 300 dm3 |
| Maximum power | 25 kW to 300 kW |
| Vacuum | 5x10-2 mbar(a) |
| Furnace atmosphere | Ar, N2 or forming gases |
| Specification | Options include 2200 deg C, overpressure to 20 MPa and in-situ dilatometer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about FCT Systeme equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
