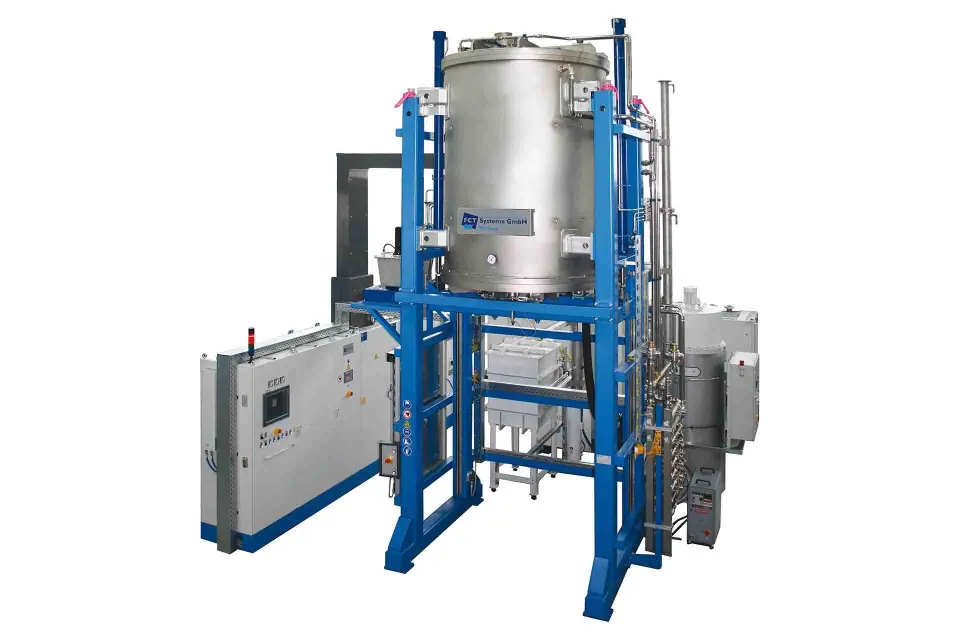

High Temperature Vacuum Sintering Furnace Type FS I
Brand: FCT Systeme | Category: Nanotechnology
An inductively heated vertical bottom loading vacuum sintering furnace for applications needing large volumes and temperatures up to 2500 deg C. The graphite susceptor delivers good uniformity, and heating zones extend to 3000 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating temperature | up to 2500 deg C, optionally up to 2800 deg C |
| Specification | Models FS I 750 and FS I 1200, useful volume 700 dm3 and 1200 dm3 |
| Heating power | 500 kW and 900 kW |
| Vacuum | 5x10-2 mbar(a) |
| Furnace atmosphere | Ar, N2 or forming gases |
| Specification | Vertical bottom loader design, pyrometer measurement, Siemens S7 with WinCC |
