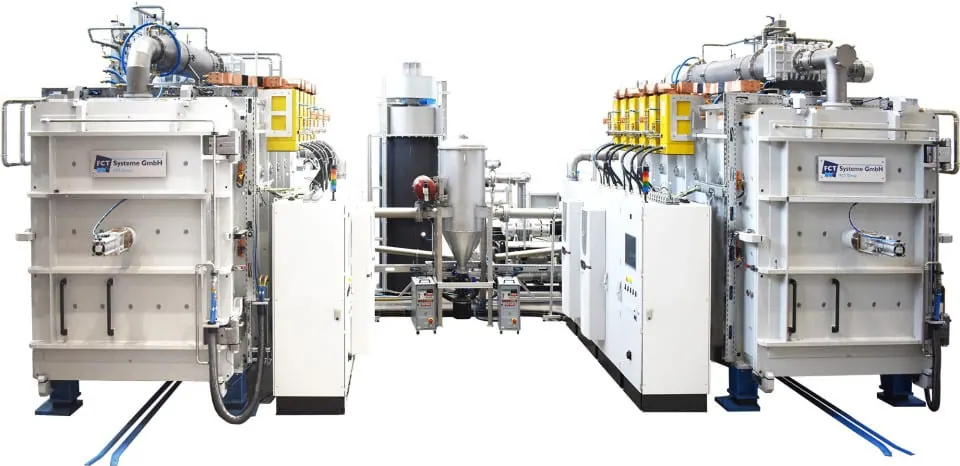

High Temperature Vacuum Sintering Furnace Type FH I
Brand: FCT Systeme | Category: Nanotechnology
An inductively heated horizontal vacuum sintering furnace for large furnace volumes. The inductively heated graphite susceptor gives good temperature uniformity at 2500 deg C and above, and the design offers a longer service life than resistance heated equivalents.
Technical Specifications
| Parameter | Value |
|---|---|
| Working temperature | up to 2500 deg C, up to 2800 deg C on special request |
| Specification | Models FH I 1250 to FH I 4000, useful volume 1250 dm3 to 4000 dm3 |
| Heating power | 400 kW to 800 kW |
| Vacuum | 5x10-2 mbar(a) |
| Furnace atmosphere | Ar, N2 or forming gases |
| Specification | Induction heating with double walled, water cooled vacuum chamber |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about FCT Systeme equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Furnaces & Sintering Systems
- High Temperature Vacuum Sintering Furnace Type FS I
An inductively heated vertical bottom loading vacuum sintering furnace for applications needing large volumes and temperatures up to 2500 deg C. The graphite susceptor delivers good uniformity, and heating zones extend to 3000 mm.
- High Temperature Vacuum Sintering Furnace Type FS W
A vertical, resistance heated vacuum sintering furnace for debinding and sintering of ceramics, composites and powder metallurgical parts. It also handles carbonisation, recrystallisation, silicon infiltration, nitriding and metallisation under vacuum or inert gas.
- High Temperature Gas Pressure Sintering Furnace Type FP W
A resistance heated Sinter-HIP furnace for sintering under vacuum, relative pressure or overpressure. It suits ceramics and metals that decompose at high temperature and places no restriction on the geometry of the parts being sintered.
