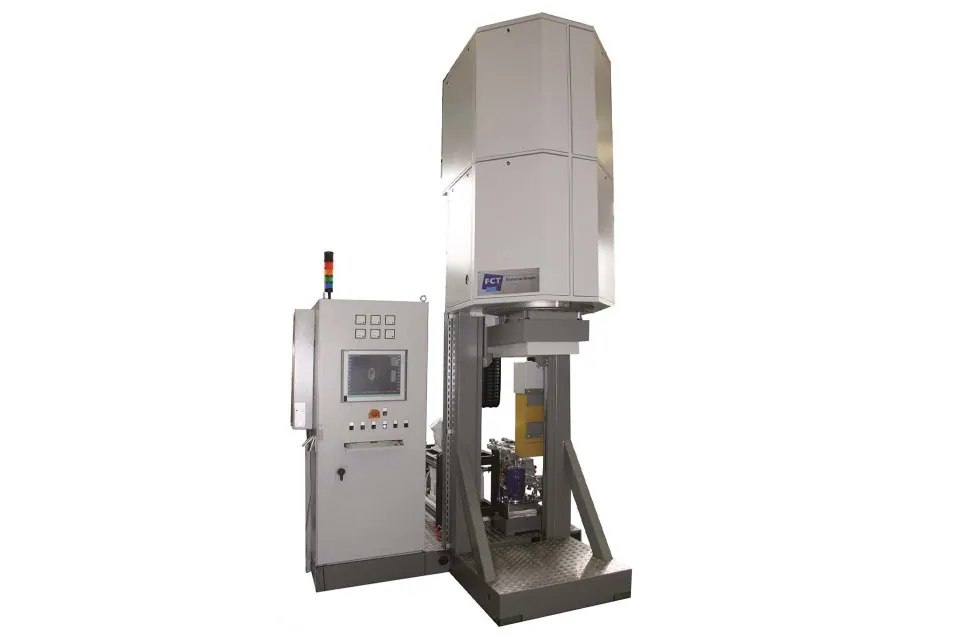

High Temperature Vacuum Sintering Furnace Type FS W
Brand: FCT Systeme | Category: Nanotechnology
A vertical, resistance heated vacuum sintering furnace for debinding and sintering of ceramics, composites and powder metallurgical parts. It also handles carbonisation, recrystallisation, silicon infiltration, nitriding and metallisation under vacuum or inert gas.
Technical Specifications
| Parameter | Value |
|---|---|
| Working temperature | up to 2200 deg C, optionally 2400 deg C |
| Specification | Models FS W 9-WO to FS W 500, useful volume 9 dm3 to 500 dm3 |
| Maximum heating power | 55 kW to 300 kW |
| Vacuum | 5x10-2 mbar(a) |
| Furnace atmosphere | Ar, N2 or forming gases |
| Specification | Double walled, water cooled vacuum vessel, Siemens S7 and WinCC control |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about FCT Systeme equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
