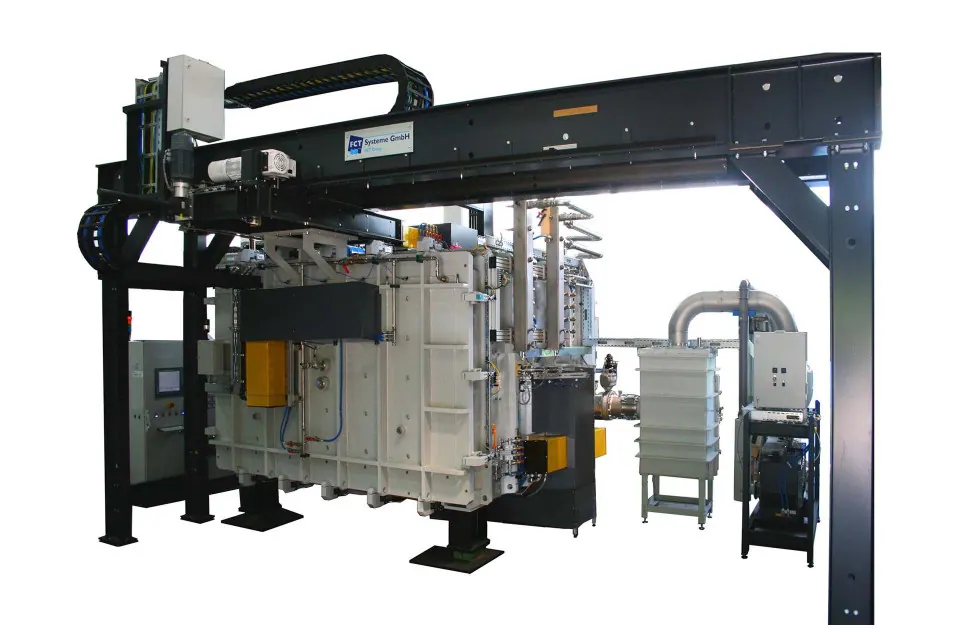

High Temperature Vacuum Sintering Furnace Type FH W
Brand: FCT Systeme | Category: Nanotechnology
A horizontal, resistance heated vacuum sintering furnace with a swivel door. It is used for debinding and subsequent sintering of ceramics, composites and powder metallurgical parts, and for carbonisation, silicon infiltration, nitriding and metallisation.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum working temperature | up to 2200 deg C, optionally 2400 deg C |
| Specification | Models FH W 9 to FH W 10000, useful volume 9 dm3 to 10000 dm3 |
| Maximum heating power | 35 kW to 1000 kW |
| Vacuum | 5x10-2 mbar(a) |
| Furnace atmosphere | Ar, N2 or forming gases |
| Specification | Double walled, water cooled vacuum vessel, Siemens S7 and WinCC control |
