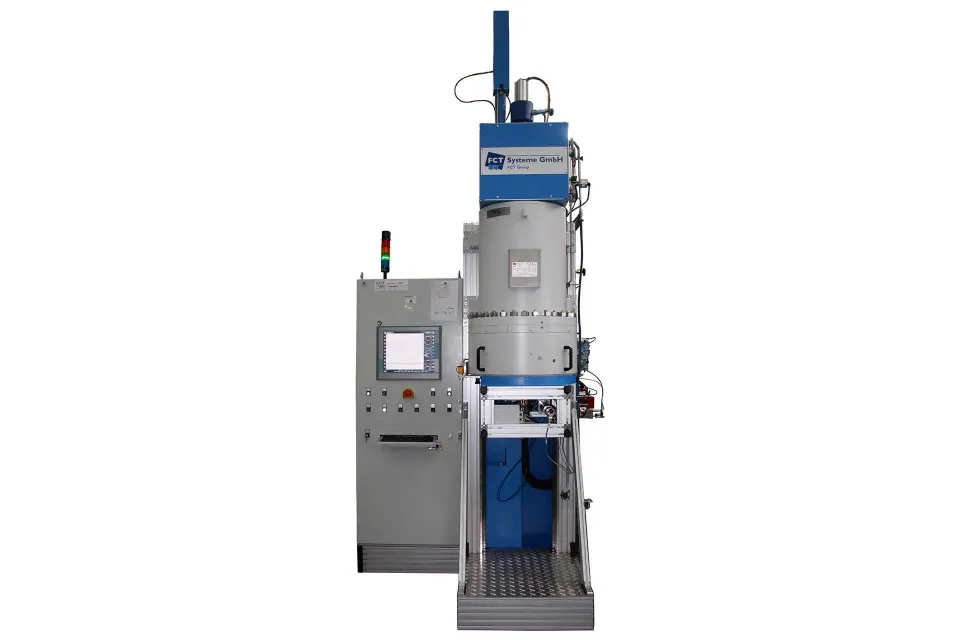

Multi-purpose Hot Press HP P
Brand: FCT Systeme | Category: Nanotechnology
A resistance heated hybrid press that combines classic uniaxial hot pressing with gas pressure sintering in one chamber. It is used for hot pressing, vacuum sintering and pressure sintering during materials development on samples up to 80 mm diameter.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum working temperature | 2200 deg C, optionally 2400 deg C |
| Maximum working pressure | 10 bar |
| Model HP P 12.5 | maximum pressing force 125 kN |
| Maximum pressing diameter | 60 mm |
| Maximum heating power | 27 kW |
| Specification | Vacuum 5x10-2 mbar(a), furnace atmosphere argon or nitrogen |
