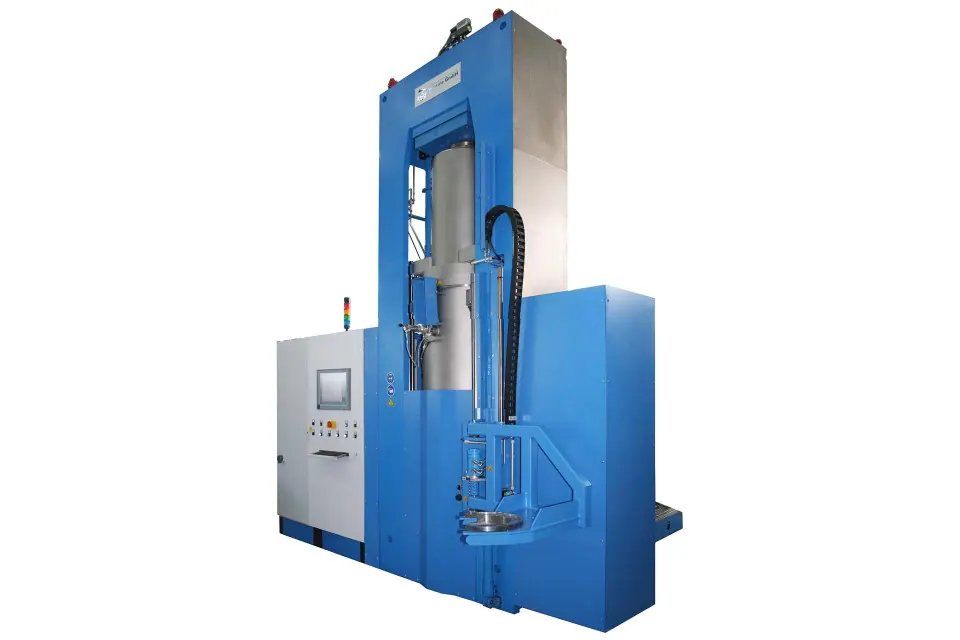

Hot Press Type HP W
Brand: FCT Systeme | Category: Nanotechnology
A resistance heated uniaxial vacuum hot press for compacting powders and powder compacts under combined temperature and pressure. It consolidates composite materials and technical ceramics in graphite moulds under vacuum or inert gas.
Technical Specifications
| Parameter | Value |
|---|---|
| Working temperature | up to 2200 deg C, optionally 2400 deg C |
| Maximum temperature in air | 1400 deg C |
| Specification | Models HP W 10 to HP W 400-SP, pressing force 100 kN to 4000 kN |
| Maximum pressing diameter | 60 mm to 680 mm |
| Maximum heating power | 30 kW to 350 kW |
| Specification | Vacuum 5x10-2 mbar(a), furnace atmosphere argon or nitrogen |
