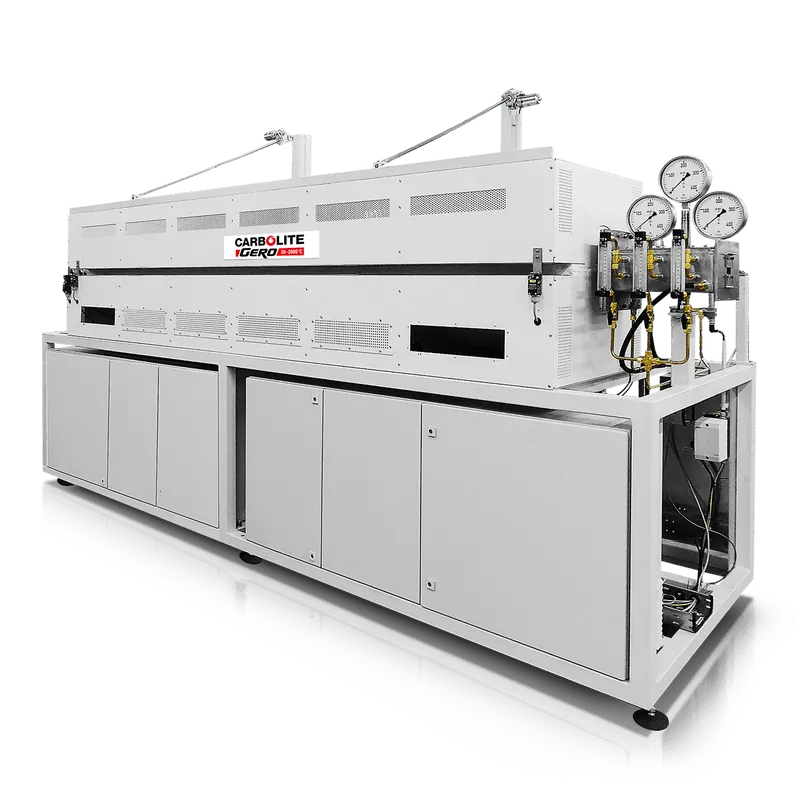

Carbon Fibre Heat Treatment Furnaces
Brand: Carbolite Gero | Category: Nanotechnology
Custom furnaces for carbon fibre research and production, covering the three stages of the process. Precursors are debound in a metal work tube, pre-sintered in a ceramic work tube, then finally sintered in a water cooled graphite heated vessel.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Debinding up to 800 deg C in a tube furnace with a metal work tube |
| Specification | Pre-sintering up to 1300 deg C in a tube furnace with a ceramic work tube |
| Specification | High temperature sintering up to 2200 deg C in a water cooled graphite heated vessel |
| Specification | Up to 4 fibres can be heat treated in one furnace at the same time |
| Specification | Inert gas counter flow flanges allow open operation during inert gas heat treatment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
