Strand Line Furnaces
Brand: Carbolite Gero | Category: Nanotechnology

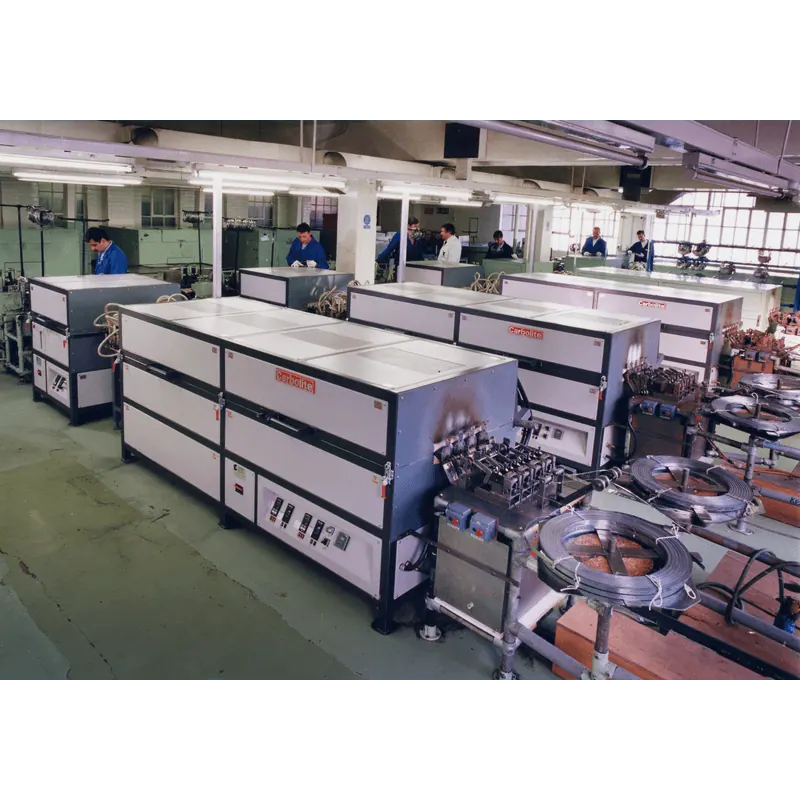

Continuous heat treatment furnaces through which one or more strands of material pass for hardening and tempering. The strand runs through Inconel or ceramic tubes, and individually controlled zones hold uniformity along long heated lengths.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Up to eight lanes offered as standard, with additional lanes to a maximum of 22 |
| Specification | Strand passes through Inconel or ceramic tubes |
| Specification | Furnace length determined by the throughput requirement |
| Specification | A burn-off flame on each tube ensures complete combustion of exhaust gases |
| Specification | Long life wire heating elements wound around ceramic tubes in both furnace halves |
| Specification | Controls available for inert and reactive gases such as cracked ammonia and hydrogen |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
