Glove Box Furnace Systems
Brand: Carbolite Gero | Category: Nanotechnology

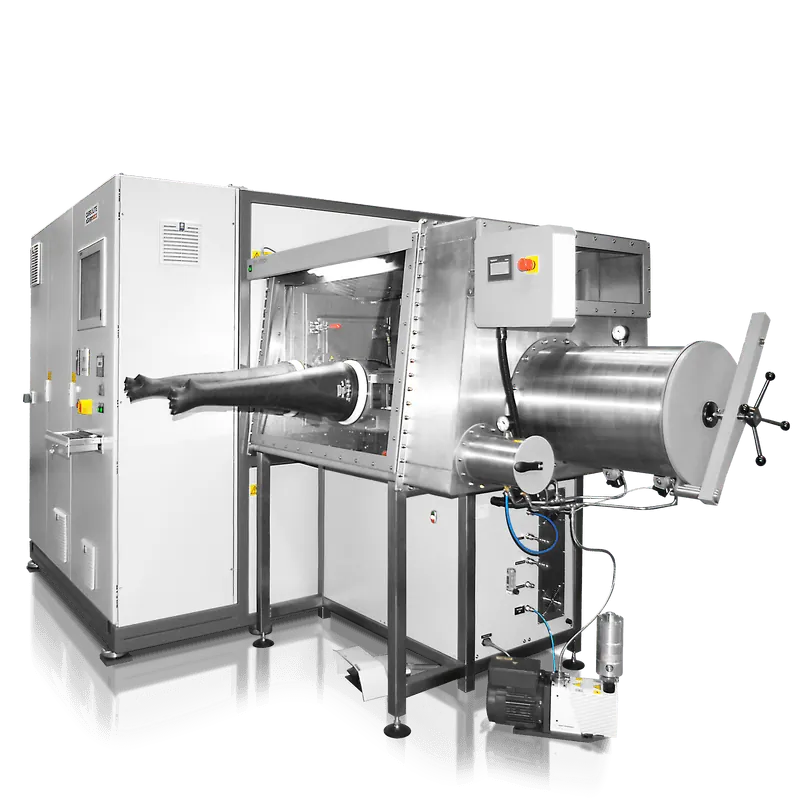

Customised glove box furnace systems in which a tube or chamber furnace is integrated with a glove box, so air sensitive samples can be loaded without exposure. Glove box size, air locks and glove count are built to the customer's requirement.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Tube furnaces up to 1800 deg C and chamber furnaces up to 3000 deg C |
| Specification | High vacuum turbo pumps for tube furnaces up to 1450 deg C |
| Specification | High vacuum turbo pumps for chamber furnaces up to 2200 deg C |
| Specification | Manual, semi-automatic or fully automated PLC control with mass flow controllers |
| Specification | Safety packages for reactive gases including H2, CO, CO2, H2S, H2O, CH4 and ethene |
| Specification | Glove box usually run on nitrogen or argon at slight overpressure, underpressure available |
