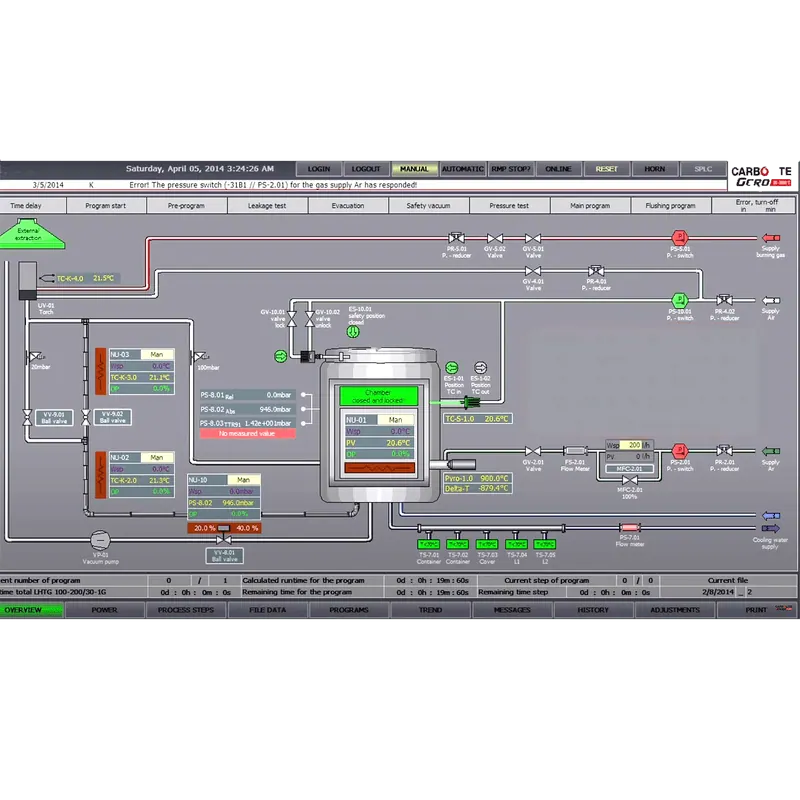

TP 1900 Touch Panel Control System
Brand: Carbolite Gero | Category: Nanotechnology
A 19 inch touch panel control system for fully configured furnaces and for hydrogen work above 5 per cent. It runs on a Siemens F-PLC and its pre-program carries out a fully automated leakage test in overpressure and vacuum.
Technical Specifications
| Parameter | Value |
|---|---|
| Panel size | 19 inch |
| Number of programs | 20, with a maximum of 25 segments each |
| Data export | csv, with logging of all process and operational data |
| Specification | Remote access with Siemens software, remote maintenance optional |
| Specification | CC-IPC1900 version adds an industrial PC with standard Windows software |
| Specification | Based on an industrial standard Siemens F-PLC for hydrogen applications |
