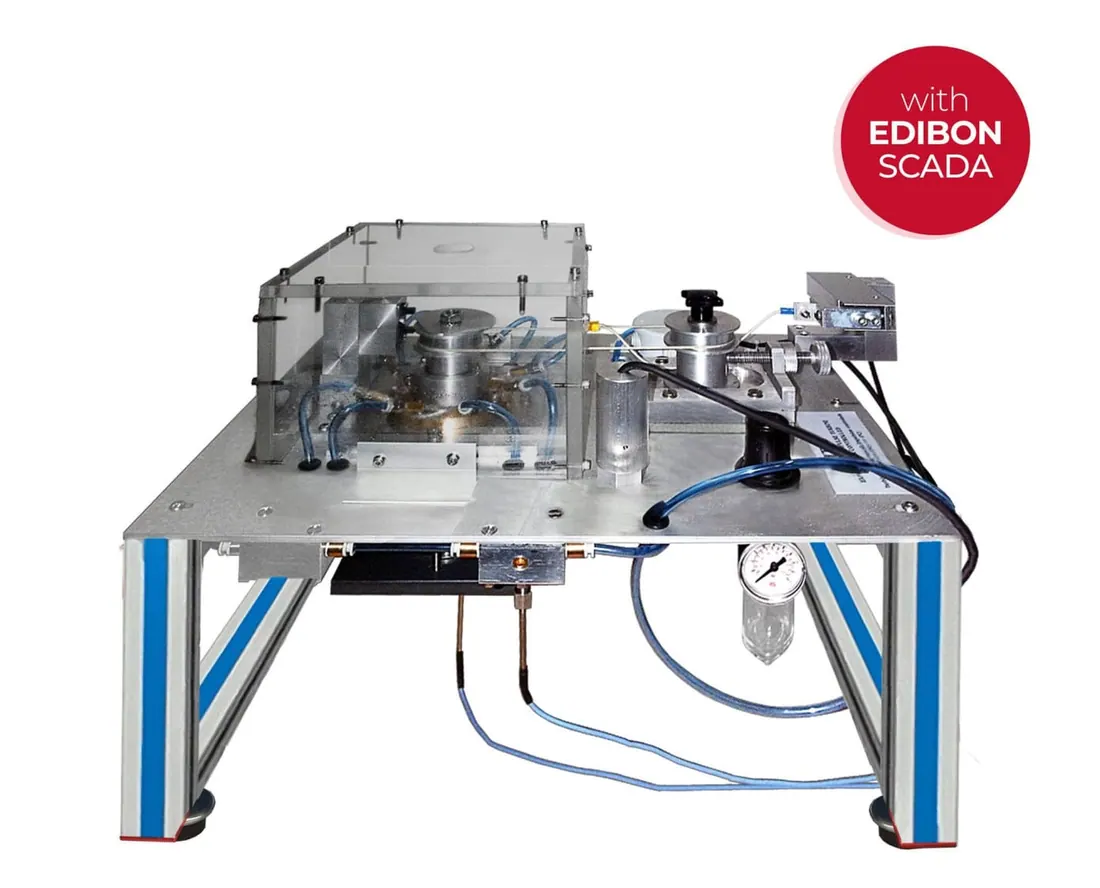

HTIC: Computer Controlled Experimental Impulse Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HTIC is a computer controlled impulse turbine demonstration set. A jet strikes the runner buckets while head, flow, speed and torque are logged, so momentum transfer, power output and the efficiency of the machine can be studied.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 800 x 500 x 600 mm approx |
| Weight | 50 Kg approx |
| Throat inlet diameter | 2 mm |
| Turbine Rotor external diameter | 53 mm |
| Turbine Rotor internal diameter | 45 mm |
| Brake pulley diameter | 60 mm |
