HVAB: Axial Fan Teaching Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

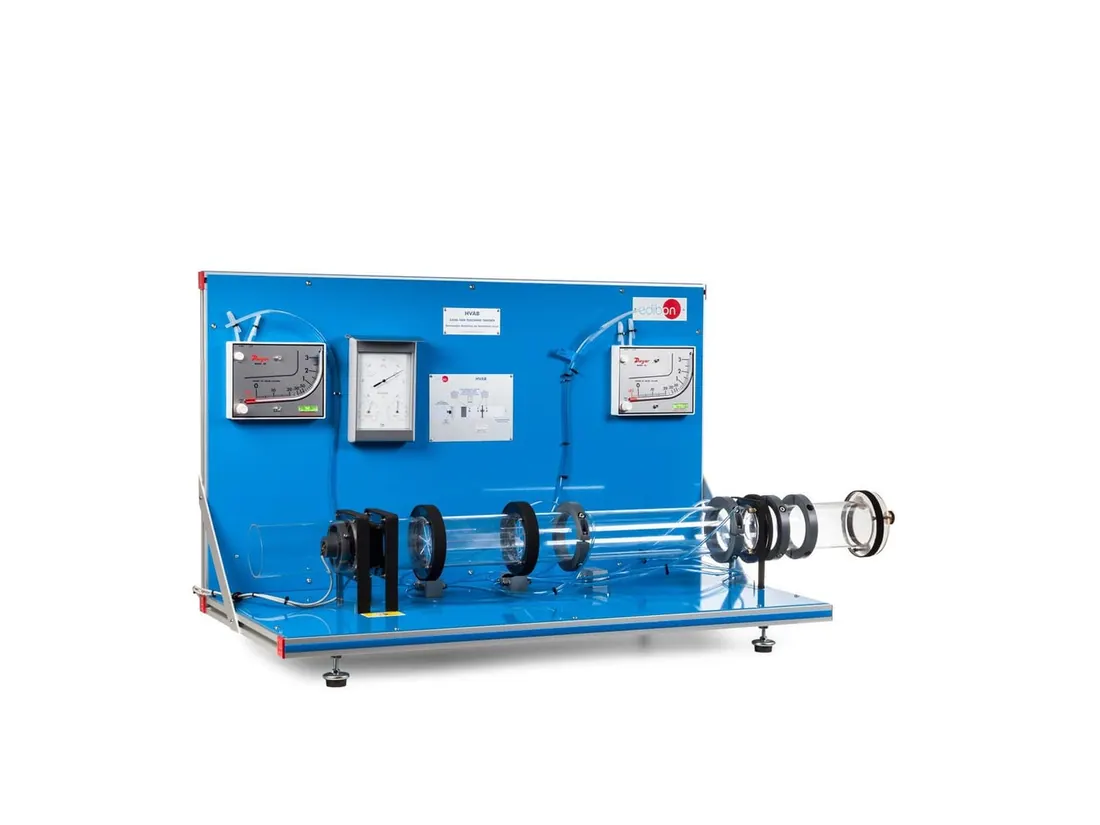

HVAB is a test bench for an axial fan. Air flow, pressure rise, speed and power are measured with the outlet throttled so the characteristic curves can be obtained and compared with a centrifugal machine. A computer controlled version, HVAC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1800 x 580 x 700 mm approx |
| Weight | 55 Kg approx |
| Single stage axial fan with speed regulation, range | 0 to 7000 rpm |
| Diameter | 115 mm |
| Speed sensor, range | 0 to 7000 rpm |
| Slanted tube manometer to measure the differential pressure and the air flow, range | 0 to 3 inch H2O (0 to 76 mm H2O) |
