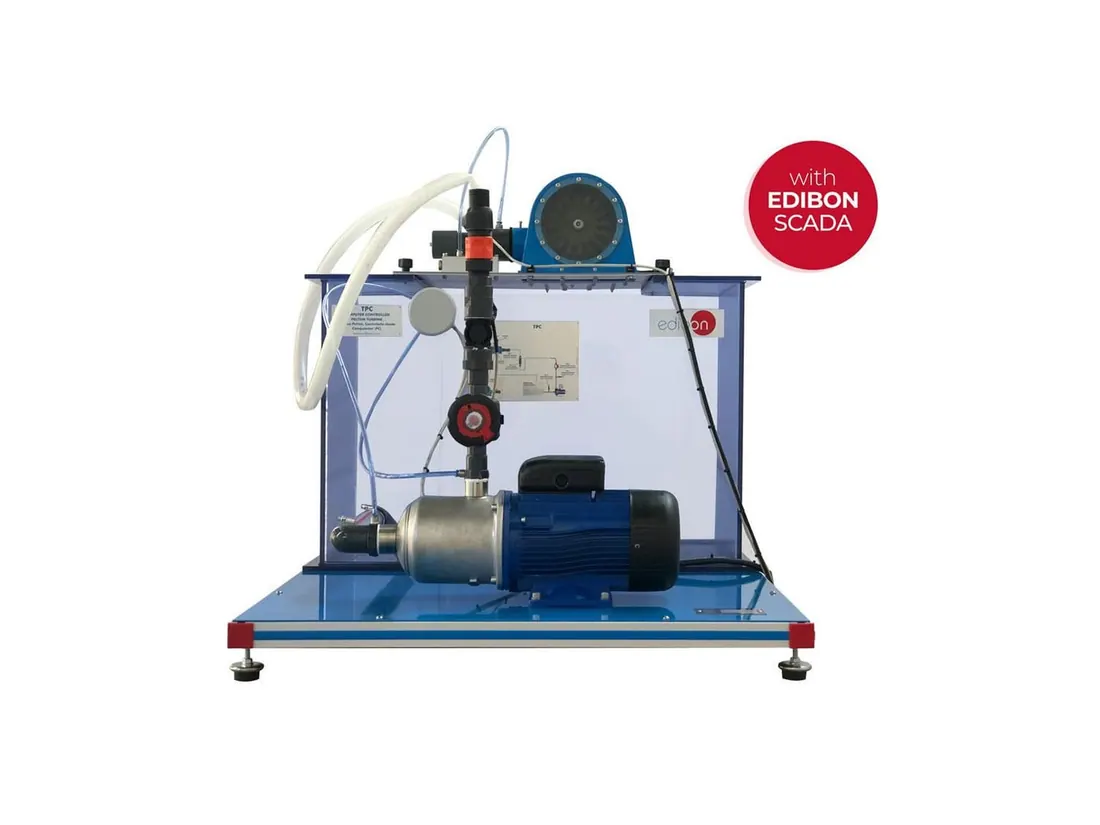

TPC: Computer Controlled Pelton Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TPC is a computer controlled Pelton turbine test set. Head, flow, speed and torque are logged through the data acquisition system so power, efficiency and the characteristic curves at different nozzle settings can be obtained.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 800 x 900 x 800 mm approx |
| Weight | 75 kg approx |
| Speed range | 0 to 4000 rpm |
| Drum radius | 30 mm |
| Maximum pressure | 7 bar |
| Maximum water flow | 160 l/min |
