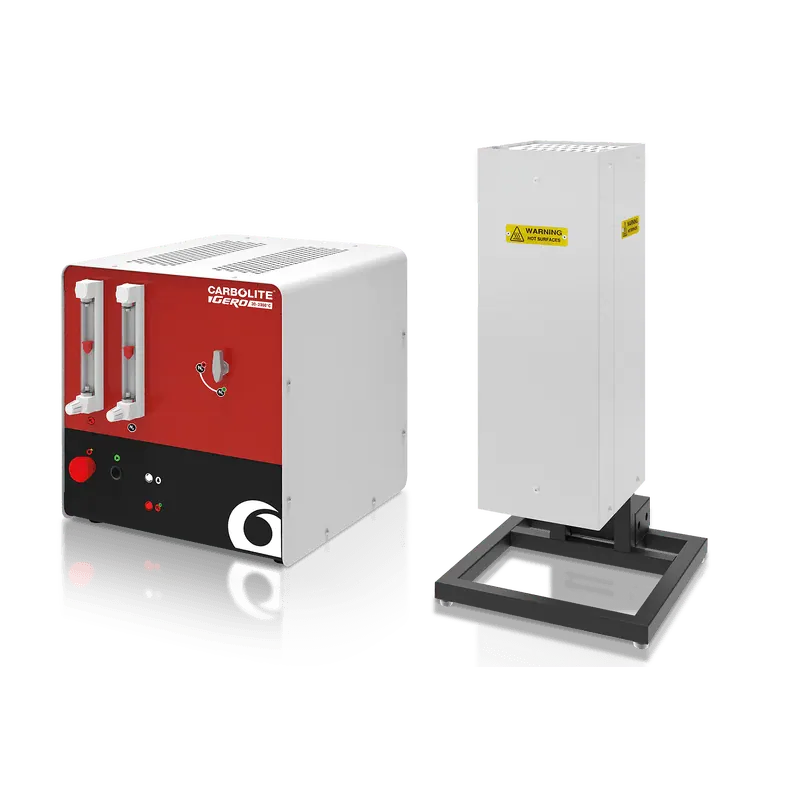

Hydrogen Gas Safety System
Brand: Carbolite Gero | Category: Nanotechnology
A laboratory gas safety system required for safe hydrogen use in Carbolite Gero tube furnaces and metallic chamber retorts. It purges with nitrogen, admits hydrogen only above the safety temperature, and burns off the exhaust.
Technical Specifications
| Parameter | Value |
|---|---|
| Two systems | one for hydrogen from 750 deg C to maximum, one from room temperature |
| Specification | Suits tube furnaces with a work tube package or chamber furnaces with an A105 retort |
| Specification | Chamber retort internal volume up to 50 litres |
| Specification | Automatic nitrogen purge before and after the run, and on unplanned shutdown |
| Specification | Two adjustable flow meters blend hydrogen and nitrogen flows |
| Specification | Monitored electrically heated gas ignitor ensures the hydrogen is fully consumed |
