CMOS EBSD IR Screen
Brand: Oxford Instruments | Category: Nanotechnology

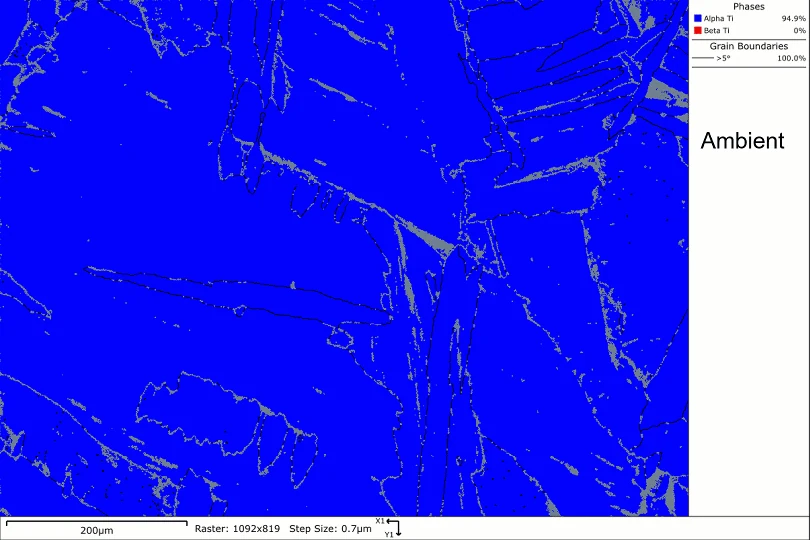

The CMOS EBSD IR Screen lets electron backscatter diffraction run during in situ heating experiments. It blocks the infrared radiation emitted by a hot sample that would otherwise saturate the detector, without the loss of sensitivity caused by coating the phosphor screen.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Allows EBSD analysis in combination with heating stages |
| Specification | Same EBSD detector performance during heating as at room temperature |
| Specification | No compromise in room temperature performance from the IR filtering |
| Specification | Compatible with the Oxford Instruments CMOS EBSD detector range |
