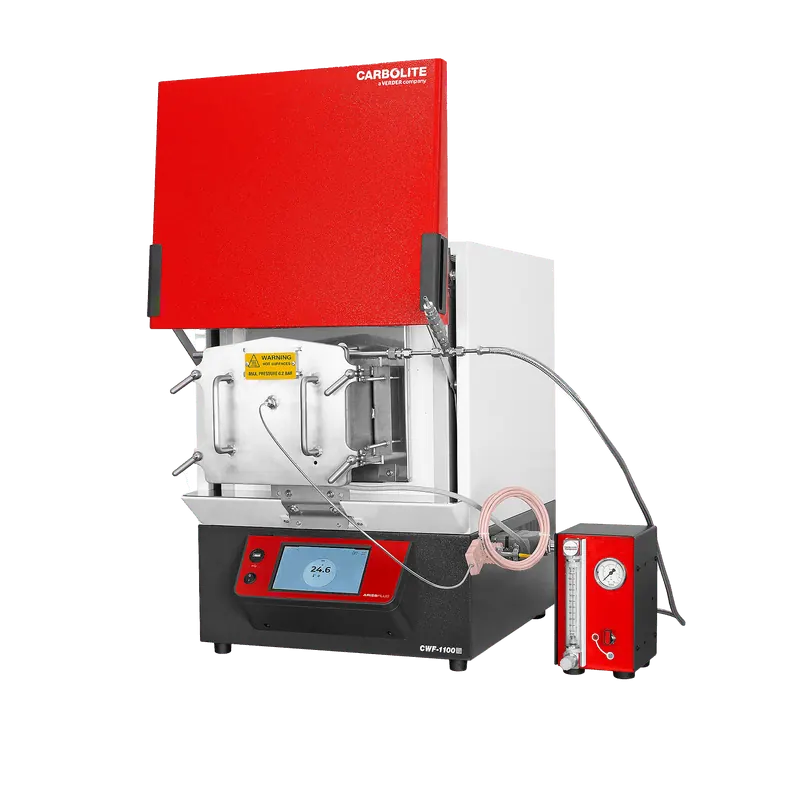

A105 and A107 Chamber Furnace Retorts
Brand: Carbolite Gero | Category: Nanotechnology
Sealed metallic retorts that give a chamber furnace a controlled inert or reactive atmosphere. The A105 uses a silicone rubber seal and reaches lower oxygen levels than the sand sealed A107, and can be run with the hydrogen safety system.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1100 deg C in NiCr alloy Inconel |
| Maximum operating temperature | 1050 deg C in 314 grade stainless steel |
| Specification | Oxygen levels down to 30 ppm achievable with the A105 |
| Specification | A105 sealed by a removable front opening insulated door with silicone rubber seal |
| Specification | A105 retorts for CWF furnaces have a 3 mm thermocouple gland through the door centre |
| Specification | Retort and furnace must be ordered together as the furnace is modified to suit |
