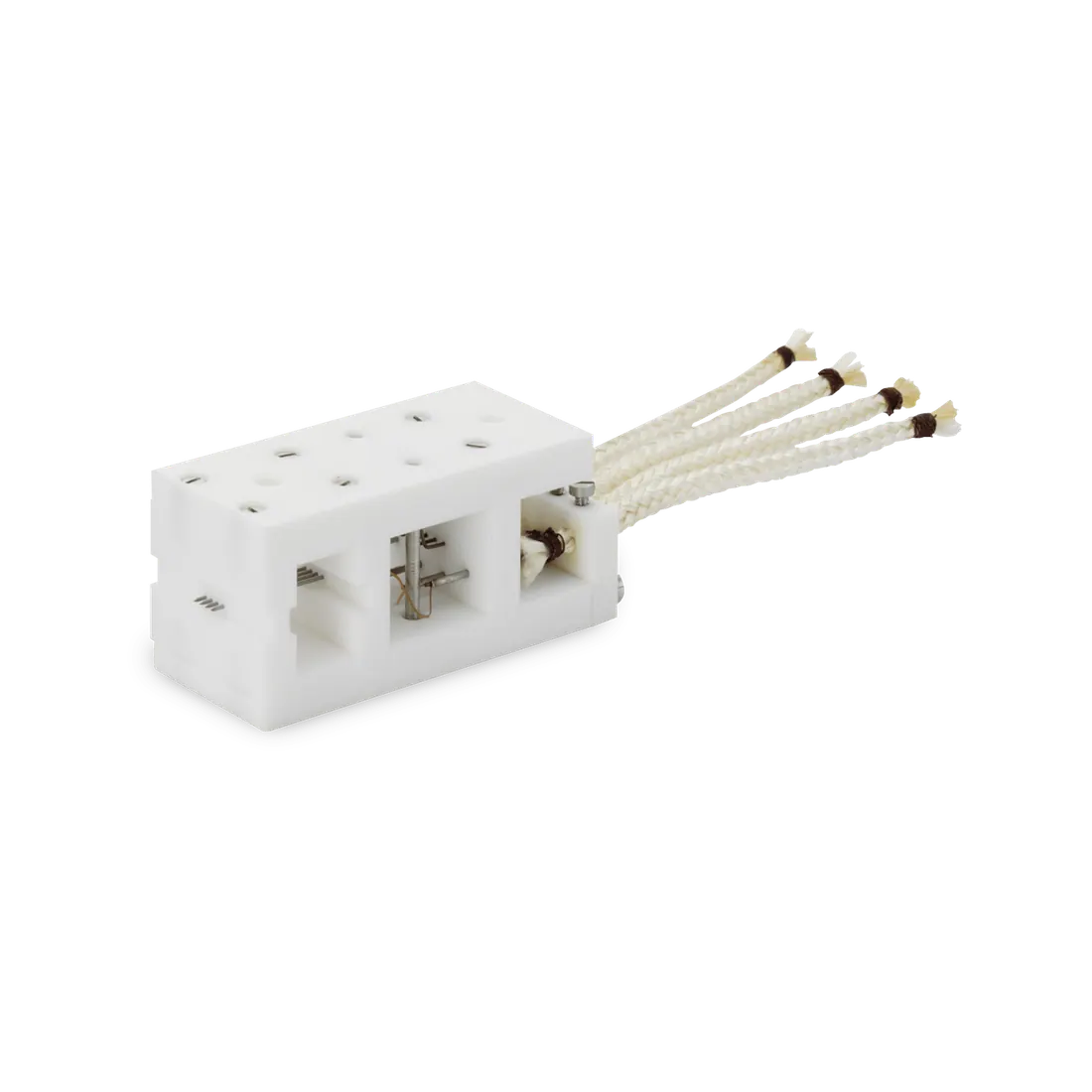

Jandel Macor four point probe
Brand: Jandel Engineering | Category: Nanotechnology
The Macor probe is built for high and low temperature measurement. In an oven it works from about 80 K to 600 K, and if only the sample is heated it can be used up to 1000 K, though prolonged contact should be avoided. It is not jewel guided.
Technical Specifications
| Parameter | Value |
|---|---|
| Oven temperature range | approximately 80 K to 600 K |
| Specification | Usable up to 1000 K if the sample only is heated, avoiding prolonged contact |
| Specification | Not jewel guided, spacing tolerance approximately +/-20 microns |
| Specification | An adjusted Jandel cylindrical probe covers 80 K to 500 K where a narrower range is acceptable |
