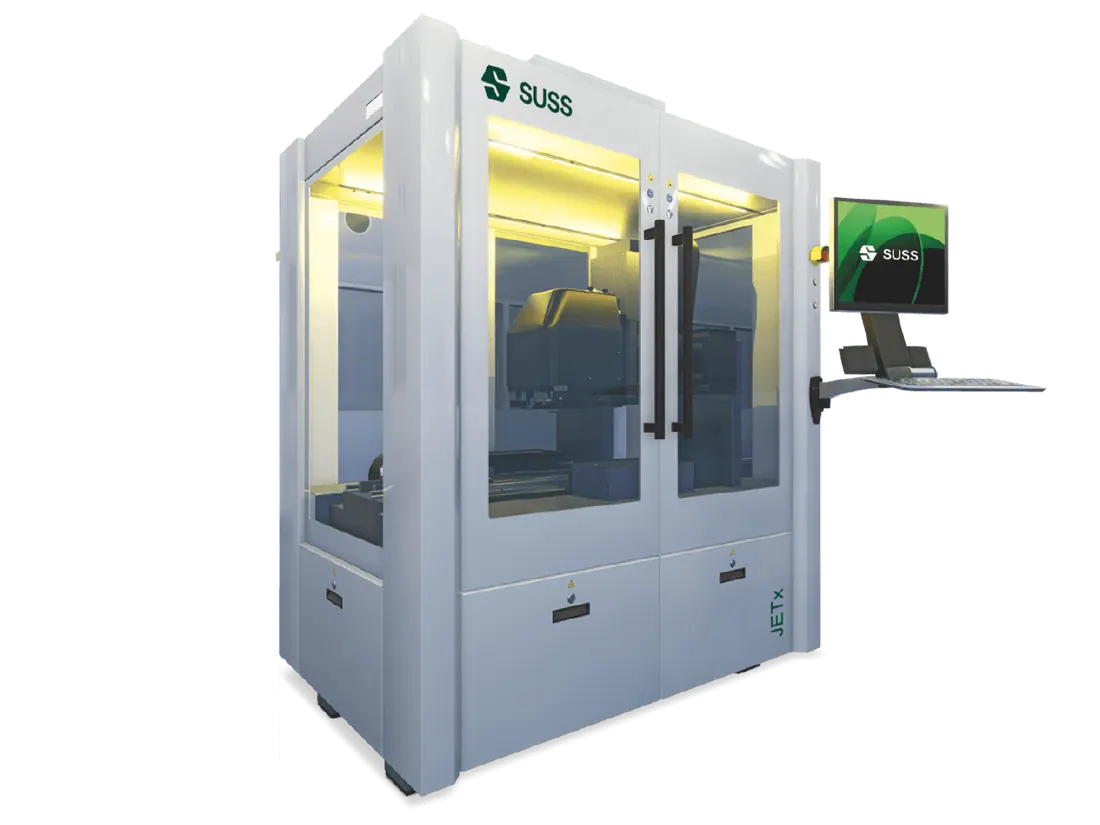

JETx Automated Inkjet Printer
Brand: SUSS MicroTec | Category: Nanotechnology
An automated inkjet platform for production deposition of functional materials on wafers up to 300 mm and panels up to 24 by 30 inches. It prints up to four materials in one system and places material only where it is needed, which cuts waste.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate sizes | wafers up to 300 mm, panels up to 24 x 30 inches |
| Layer thickness | 100 nm to 60 µm |
| Materials | up to four printed at the same time |
| Ink types | solvent based, aqueous, hot melt and UV curable |
| Metrology | integrated DI300 vision system |
| Material saving | up to 90% against subtractive techniques |
