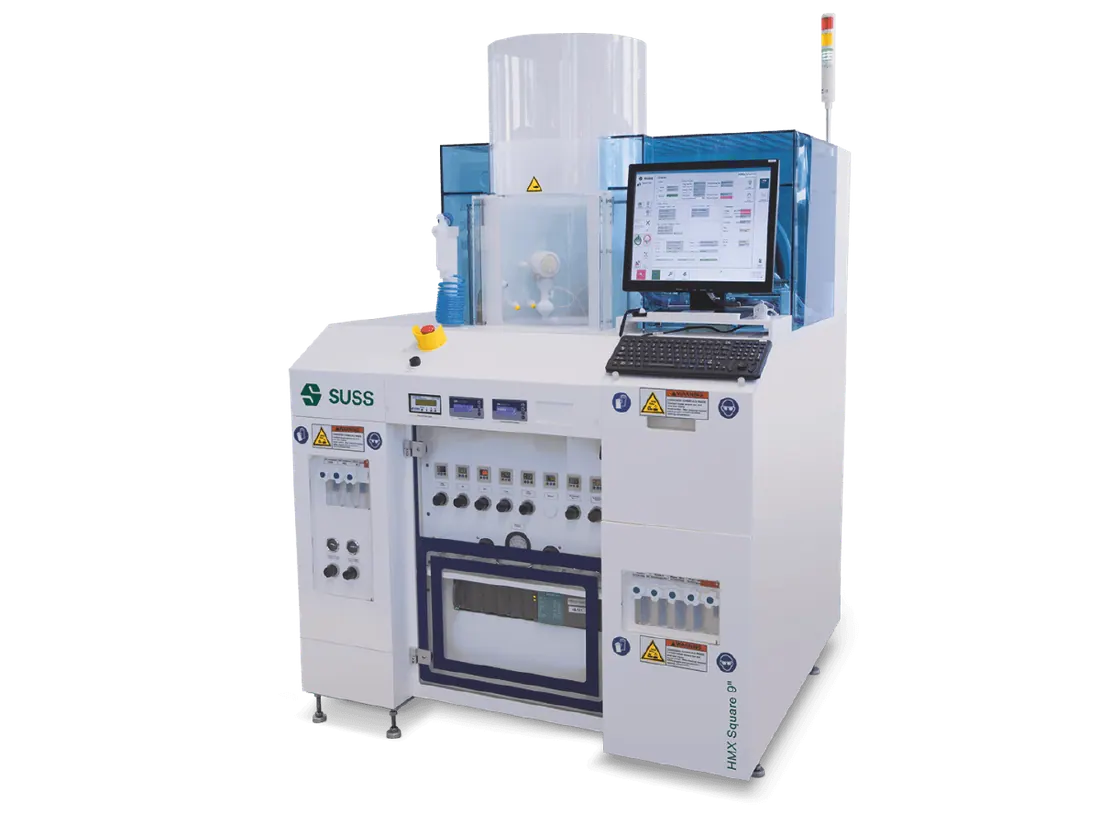

HMx Series Photomask Cleaning System
Brand: SUSS MicroTec | Category: Nanotechnology
A compact manually loaded cleaning platform for photomasks and other delicate substrates, aimed at research and small series work. It brings develop, etch and cleaning steps into one cabinet, and also serves opto-electronics, OLED and semiconductor back end applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Footprint | 960 x 1120 mm base cabinet, 300 x 1070 mm media cabinet |
| Loading | manual loading with automated process steps |
| Cleaning | dual megasonic, high-pressure Fulljet, brush, in-situ SC1/SPM and UV dry cleaning |
| Developing | A+ nozzle dispense with ASONIC megasonic technology |
| Environment | DIN EN ISO 14644 Class 2 |
| Compliance | SEMI S2, S8 and S13, CE marked, SECS/GEM 200/300 mm interface |
