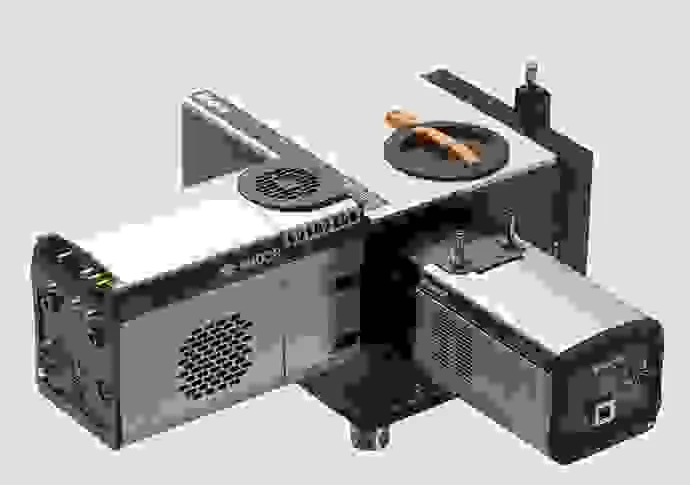

Kymera 193i Spectrograph
Brand: Oxford Instruments | Category: Nanotechnology
Designed around research-grade performance, versatility and ease of use, the Kymera 193i uses intelligent motorised adaptive focusing to reach the best spectral resolution in any configuration with high repeatability. Its 193 mm focal length and F/3.6 aperture, paired with Andor's ultra-sensitive UV-NIR and SWIR detectors, give strong photon collection efficiency for low light micro-fluorescence and Raman work as well as routine spectral acquisition. An indexed dual-grating turret with eXpressID RFID recognition, dual detector outputs and an astigmatism-corrected toroidal optical design make the platform highly configurable. Dedicated micro-spectroscopy interfaces, including a modular cage system, allow direct integration with microscopes.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Focal length | 193 mm |
| Aperture | f/3.6 |
| Motorised grating turret | 2 positions |
| Input-slit height | 15 mm |
| Shutter repetition rate | 10 Hz continuous; 40 Hz burst |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
