NIR SWIR Cameras
Brand: Oxford Instruments | Category: Nanotechnology

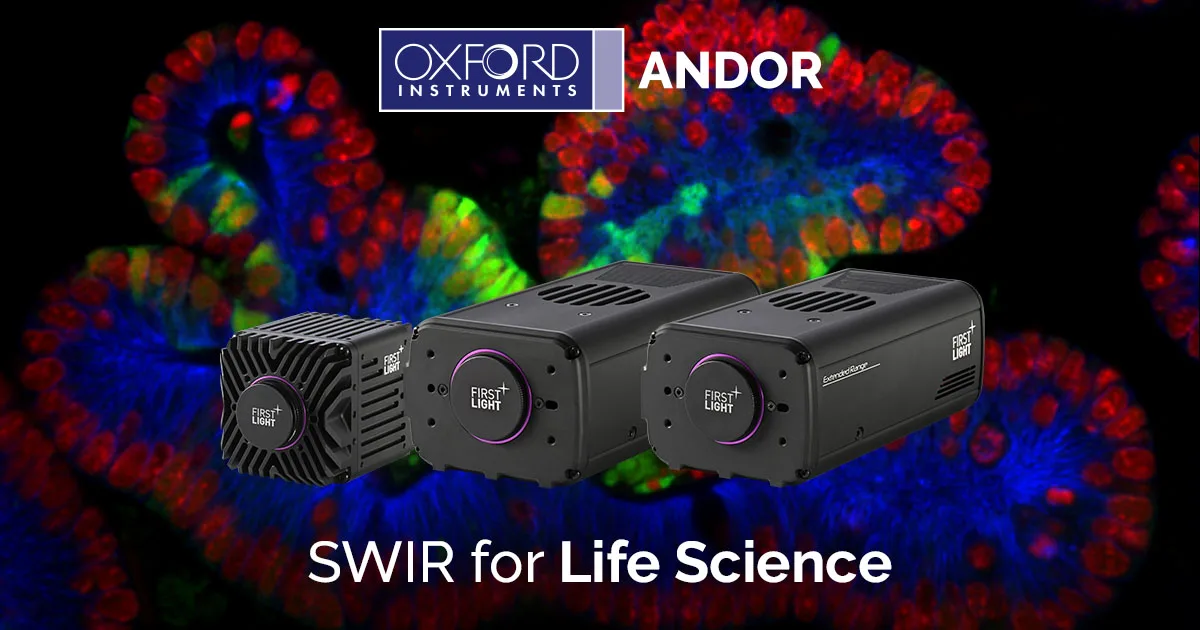

Andor's C-RED series gathers InGaAs based cameras built for quantitative scientific measurement in the NIR II and SWIR imaging window. High sensitivity is matched to high speed and wide dynamic range across a wide field of view, so both fast processes and slow ones running to several minutes of exposure can be captured. Three models make up the family: the C-RED 2 for high speed low noise work, the compact temperature stabilised C-RED 2 Lite, and the C-RED 2 ER extended range versions reaching 1.9 µm and 2.2 µm.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model | C-RED 2 | C-RED 2 ER | C-RED 2 Lite |
|---|---|---|---|
| Technology | InGaAs | InGaAs | InGaAs |
| Sensor Format | 640 x 512 | 640 x 512 | 640 x 512 |
| Pixel Size (µm) | 15 | 15 | 15 |
| Wavelength Range (µm) | 0.9 - 1.7 | 1.1 to 1.9 µm (1.9) and ; 1.2 to 2.2 µm (2.2) | 0.9 - 1.7 |
| QE max (%) | 85 | 82 (1.9) ; 85 (2.2) | 80 |
| Cooling (°C) | -40 | -40 (1.9µm model) ; -55 (2.2µm model) | 25 below case temp |
| Max. Frame Rate (full array) | 600 fps | 600 fps | 600 fps |
| Read Noise (e-) | 23 | < 32 (1.9µm model) ; < 36 (2.2µm model) | 28 (@ 5°C cooled) |
Manufacturer catalogue checked 2026-09-29.
Selected manufacturer comparison data, with each model retained in its own column. Performance depends on the chosen sensor, optics and operating conditions. Confirm the exact model and options in the current quotation.
