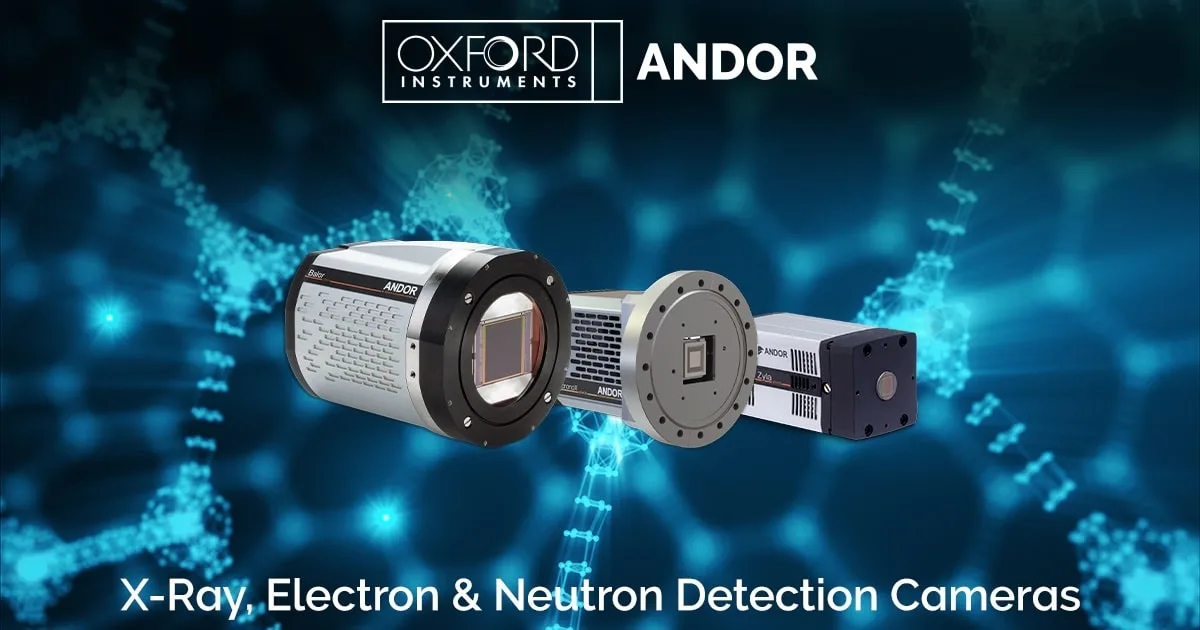

CCD, sCMOS & EMCCD Cameras for X-ray and EUV
Brand: Oxford Instruments | Category: Nanotechnology
Andor groups its high energy detection cameras into a single portfolio spanning CCD, sCMOS and EMCCD sensors for table-top laboratory and beamline experiments. The range serves extreme ultraviolet, X-ray, neutron and electron detection in material science, plasma studies, bio-sample analysis and beam or source characterisation. Three coupling approaches are covered: open front direct detection with UltraVac, fibre optic coupled indirect detection, and lens coupled indirect detection. The newest platform is the Marana-X back-illuminated sCMOS for direct X-ray detection.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
