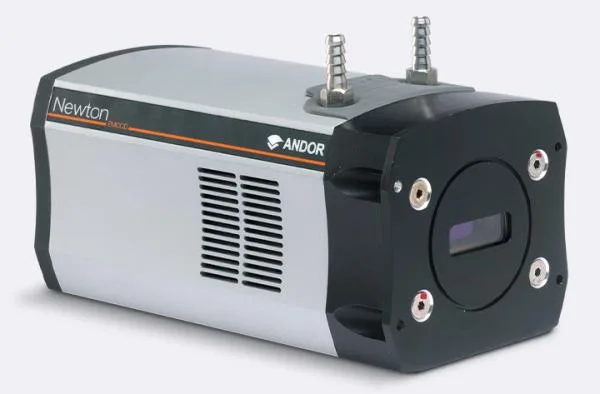

Newton CCD and EMCCD Cameras
Brand: Oxford Instruments | Category: Nanotechnology
Newton is Andor's spectroscopy detector platform for fast spectral rates and multi-fibre acquisition, offered as a CCD for low ultraviolet to near infrared photon flux and as an EMCCD for very low visible photon flux. The CCD version comes in 1024 x 256 and 2048 x 512 formats with 26 or 13.5 µm pixels, reaching 1,612 spectra per second, while the EMCCD version uses 1600 x 200 and 1600 x 400 formats with 16 µm pixels and reaches 1,515 spectra per second. Both cool to -100 °C with UltraVac and reach 95% peak quantum efficiency. A fast kinetics mode with microsecond resolution is available for broadband spectra.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Parameter | Newton CCD | Newton EMCCD |
|---|---|---|
| Sensor matrix options | 1,024 × 256 or 2,048 × 512 pixels | 1,600 × 200 or 1,600 × 400 pixels |
| Pixel size options | 26 or 13.5 µm | 16 µm |
| Published minimum cooling | −100 °C, with UltraVac | −100 °C, with UltraVac |
| Signal multiplication | Conventional CCD readout | Electron multiplication (EM gain) |
Manufacturer catalogue checked 2026-09-29.
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. The alternatives below are separate detector configurations. Confirm the sensor suffix and operating mode; not all maximum performance figures apply simultaneously.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
