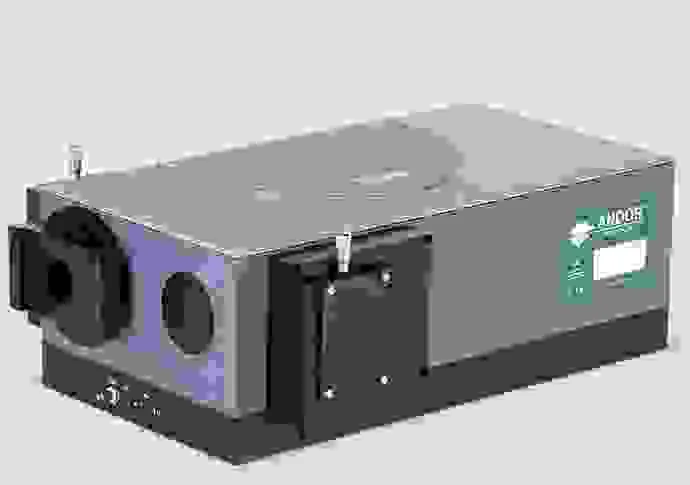

Shamrock 500i Spectrograph
Brand: Oxford Instruments | Category: Nanotechnology
Built on a Czerny-Turner optical design, the Shamrock 500i imaging spectrometer is optimised for multi-track spectroscopy. It is supplied pre-aligned and pre-calibrated as a camera and spectrometer detection solution so it drops into an existing set-up, with a spectroscopy-dedicated software interface giving real time control of detectors and spectrometer together. Optimised toroidal optics correct image astigmatism for high density multi-track work, and the motorised indexed triple grating turret can be upgraded in the field.
Published optical configuration
| Parameter | Value |
|---|---|
| Optical arrangement | Czerny–Turner |
| Grating turret | Motorised, indexed, 3 positions |
| Detector outputs | 2 |
| Interface | USB 2.0 |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
