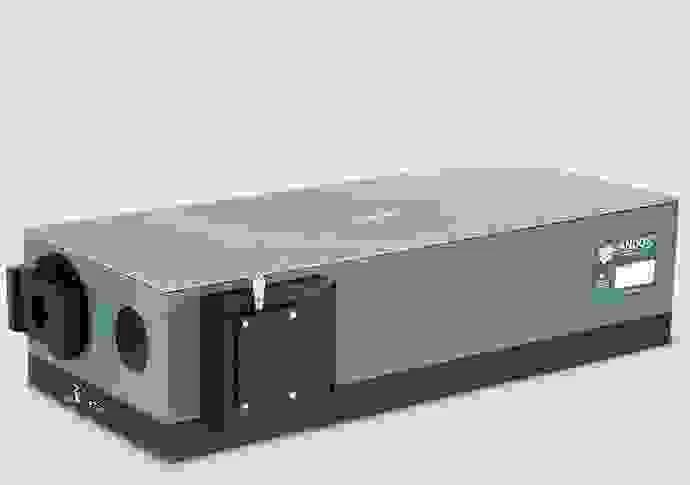

Shamrock 750 Spectrograph
Brand: Oxford Instruments | Category: Nanotechnology
The Shamrock 750 offers the highest resolution in the Shamrock family and also handles multi-track work well. Its rugged Czerny-Turner platform is supported by a wide range of light coupling accessories and gratings, and pairs with Andor's CCD, electron multiplying CCD, InGaAs and intensified CCD cameras. Systems are supplied pre-aligned and factory calibrated, and Solis spectroscopy software provides a single interface for spectrograph, detector and motorised accessory control. A multi-track enhanced option optimises the system for low crosstalk, high density multi-leg fibre signal acquisition.
Published optical configuration
| Parameter | Value |
|---|---|
| Optical arrangement | Czerny–Turner |
| Grating turret | Motorised, indexed, 3 positions |
| Detector outputs | 2 |
| Interface | USB 2.0 |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
